ZigBee DIY Smart Switch 32A| DIN Rail Switch| 1P+N 90-240VAC| Real-time Power Monitoring| Remote Control and Set Timer for Home Automation| Support Tuya/Smart Life| Voice Control| FCC Certified

Specifications

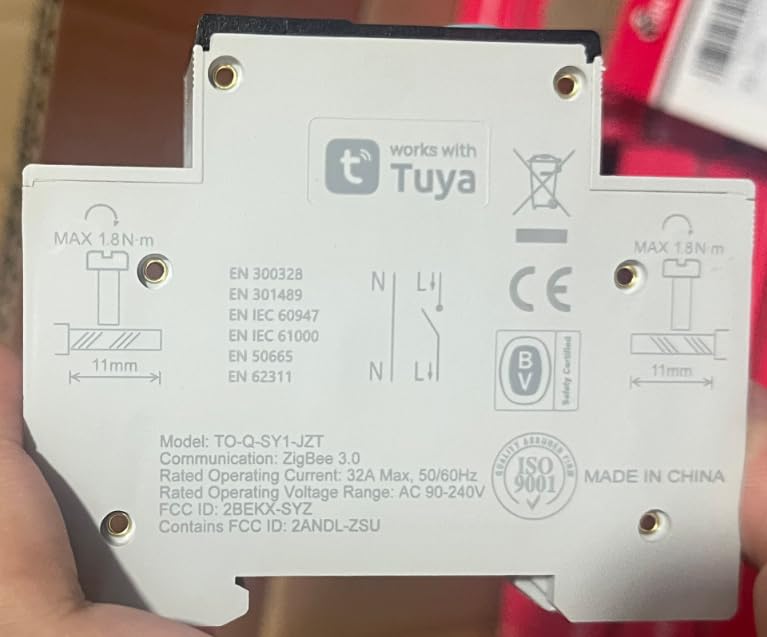

• ZigBee 3.0 Protocol: This smart switch must be used with a TUYA ZigBee hub/ gateway. If not, it will not connect to a WiFi router. Note: SY1 is a switch without any protection such as overcurrent or leakage. Complies with IEC 60947 standard. Rated Operating Voltage: AC 90-240V, 50/60Hz; Poles Description:1P+N, N pole cannot be cut off
• Maximum Wiring Capacity: 10mm² on both the "Power side" and "Load side"; Applicable Current Scenarios: AC1, applied in circuits for controlling heaters, incandescent lamps, ovens, and other purely resistive loads; Type: Latching relay, capable of carrying high current
• Universal Connected Home DIY Module: When the SY1 ZigBee smart switch is used, it can convert small appliances in home from traditional to smart mode in less than 10 minutes. With this small and exquisite ZigBee switch, you can turn lamps, fans, parking heaters and others into networked objects
• Remote Control via APP: You can control appliances at home via "Smart Life" or "TUYA" app, which is not limited by distance and time. The "Smart Life" app can be downloaded from the App Store and Google Play
• Power Monitoring (AC Electricity Positive Import): It can analyze the real-time situation and historical power consumption of connected devices, view the load current, voltage, power in real time and record (hours, days, months and years)
• Voice Control: The connected ZigBee switch is compatible with the voice control of Amazon Alexa and Google Assistant. You can voice commands to turn the device on or off. With the SY1 switch, you can have free hands
• Timing Function: The smart ZigBee switch has Timing functions. The connected universal switch can prevent you from forgetting to turn off appliances. Adjust the working time of appliances as needed to avoid unnecessary power wear and tear and realize power saving
• Easy to Install and Widely Applicable: You can connect the smart ZigBee switch to device in less than 10 minutes. Only need to press and insert the cable to complete the wiring. It is very easy to use the screwdriver to tighten or loosen the screws

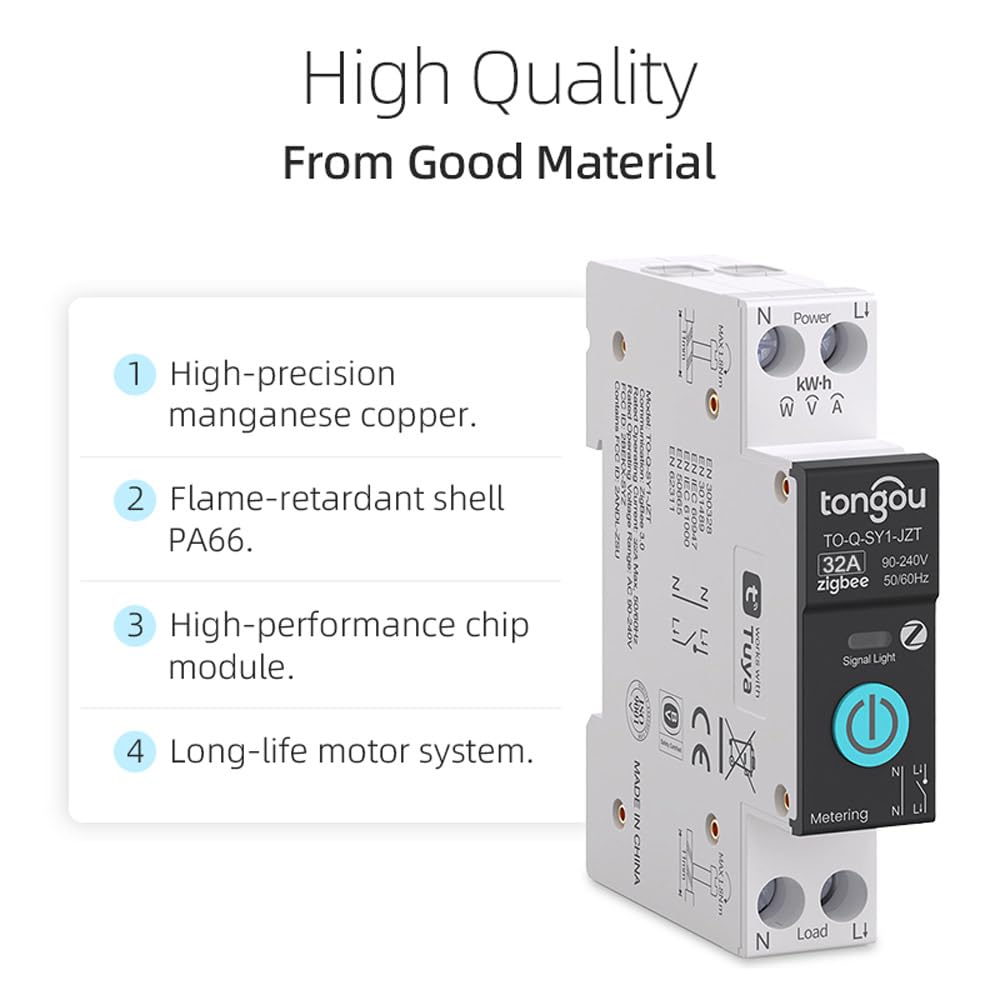

• High Quality Materials: The smart ZigBee switch is made of high quality materials. The copper has good electrical conductivity. The flame retardant material PA66 can withstand the high temperature. Which can effectively improve the safety of use
• Operation Mode: ON-OFF
• Current Rating: 32 Amps
• Operating Voltage: 120 Volts (AC)
• Contact Type: Normally Open
• Connector Type: Screw
• Brand: TONGOU
• Switch Type: Smart Switch
• Terminal: Screw
• Material: Nylon PA66
• Item dimensions L x W x H: 3.54 x 0.79 x 3.15 inches
