Zigbee DIN Rail Smart Meter| 1-50A 90-240VAC 1P+N|Smart Switch with Real-time Power Monitoring| Remote Control via Tuya/Smart Life| Export/Clear Power Data| Recloser Function| FCC Certified

Specifications

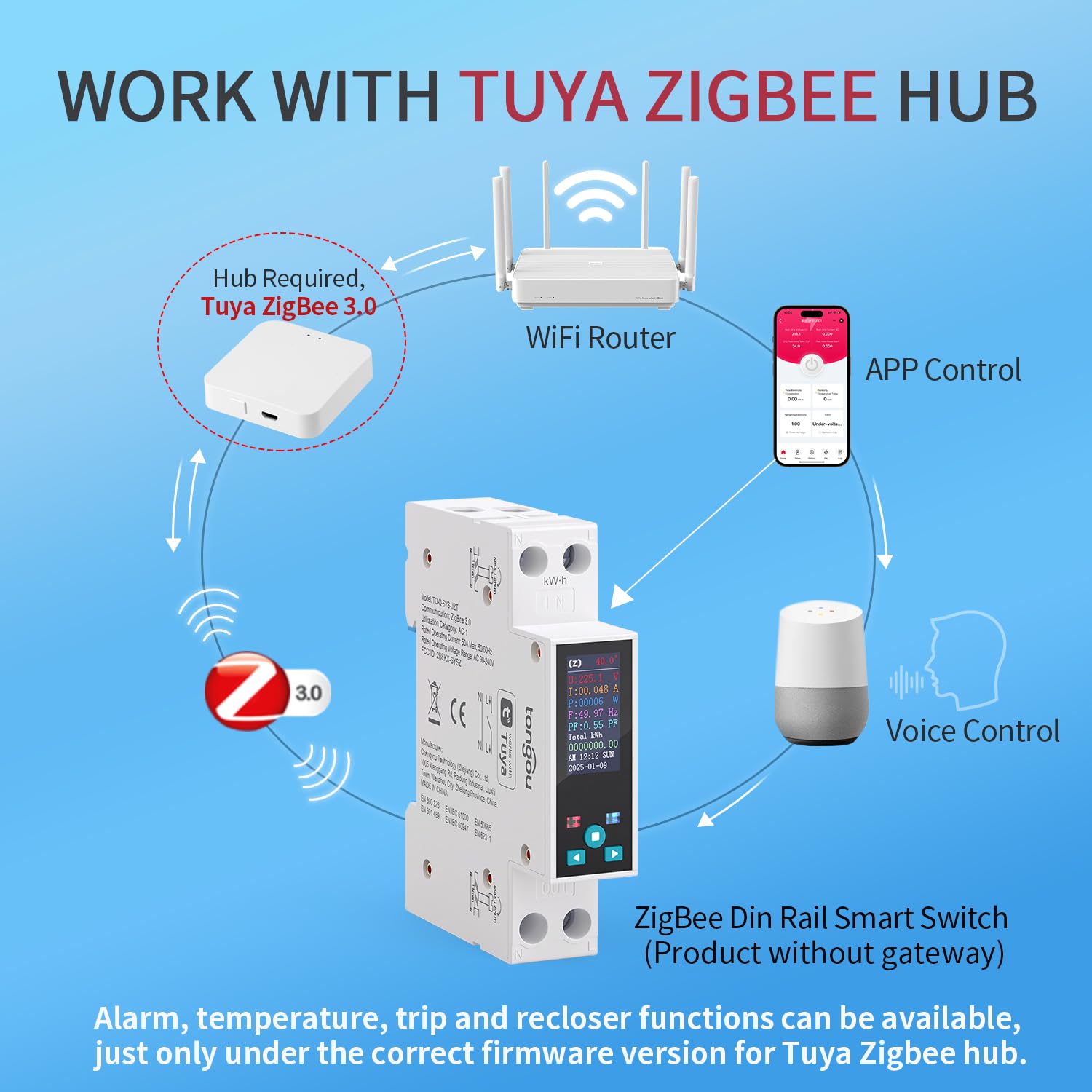

• ZigBee 3.0 Protocol: For stable ZigBee smart switch operation, please use it with a Tuya ZigBee hub/ gateway. And please ensure that the gateway's firmware version meets the version specified. If not, the alarm/ temperature/ trip and recloser functions will be affected

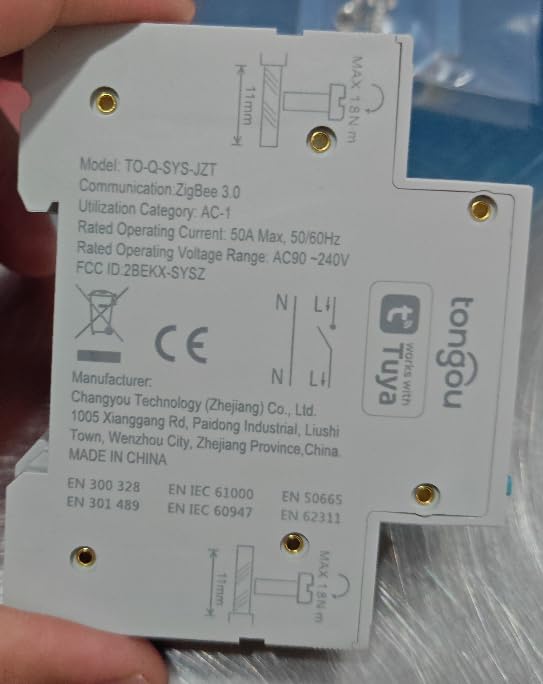

• Smart ZigBee Switch: This product is a intelligent ZigBee switch with over-current protection, high power protection and high CPU temperature protection, but no short circuit protection. It is recommended to use it with a circuit breaker. Complies with IEC 60947 standard; Poles Description:1P+N, N pole cannot be cut off
• Applicable Current Scenarios: AC-1, applied to circuits controlling heaters, incandescent lamps, ovens, and other purely resistive loads; Max Wiring Capacity: Power side: 10 mm²; Load side: 10 mm²; Type: Latching relay, capable of carrying high current

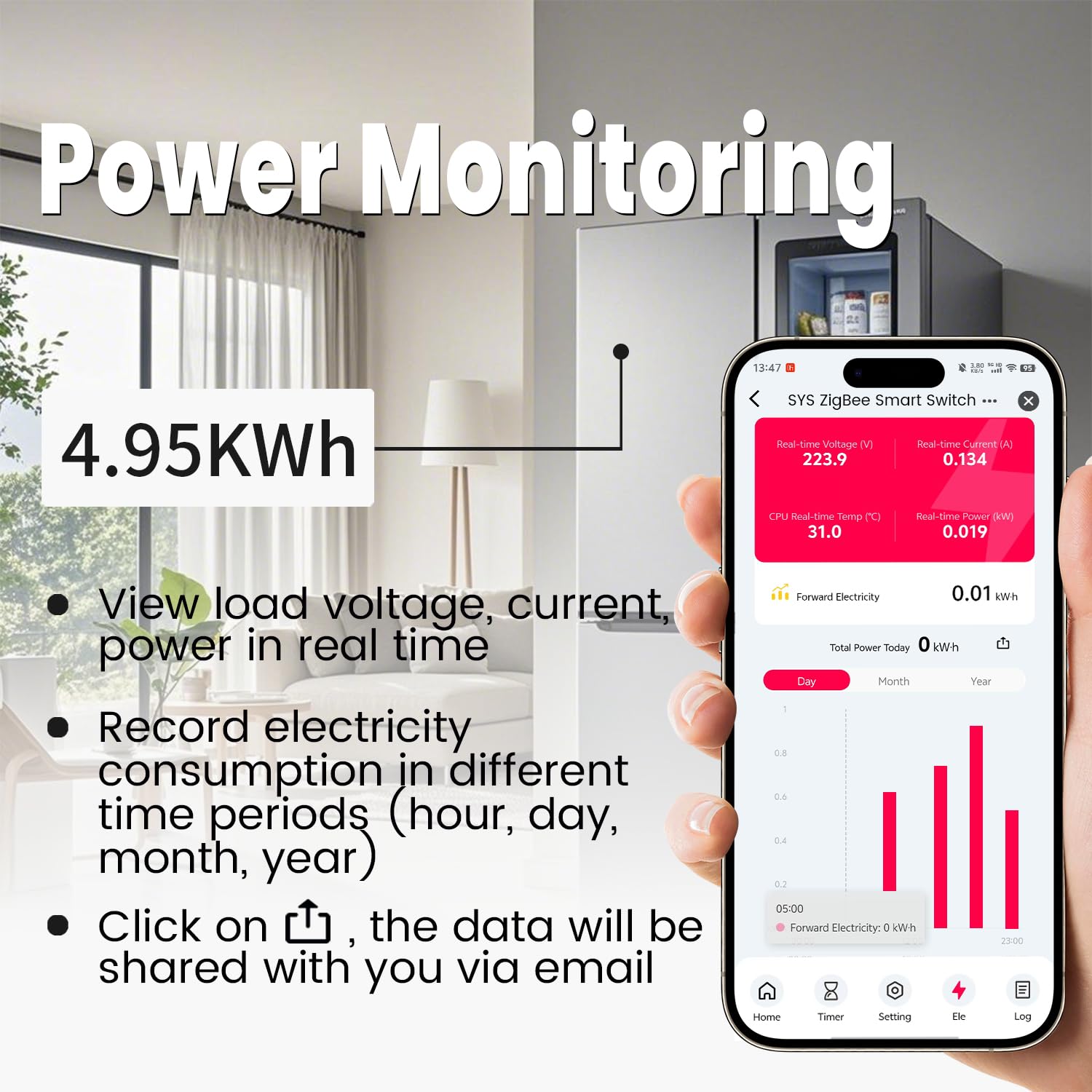

• Real-time Power Monitoring (AC Electricity Positive Import) and Management: (1) Analyze the real-time electricity consumption, real-time current, real-time voltage, and real-time power of connected devices, and record historical power consumption (by hour, day, month, and year). Also can export power consumption data via email. (2) Clear Electricity Data. (3) There are functions to display the current remaining electricity, prepaid switch, and clear the remaining electricity, which facilitates comprehensive electricity management
• Local Control: (1) Even no ZigBee signal, you can set the parameters and functions through the 3 buttons on the smart ZigBee switch. (2) Password can be set to prevent unauthorized access and modification
• Multiple Reclosing Functions: There are overcurrent reclosing, overpower reclosing and overvoltage and undervoltage reclosing functions. Please note that after overcurrent/overpower protection, the device will attempt 3 reclosures. If overcurrent/overpower persist, no further reclosure will occur. After overvoltage and undervoltage protection, the device will automatically reclose. Closing threshold: overvoltage threshold -15 V, undervoltage threshold +15 V
• Screen Display: Smart switch with LCD color backlit display, clear and easy to read data. Adjustable 1-5 levels of brightness and directional
• Multiple Controls: (1) Remote Control via APP: You can control household appliances via the "Smart Life" or "Tuya" APP. There are no restrictions regarding distance and time. (2) Voice Control: The switch is compatible with Amazon Alexa and Google Assistant. You can control your home appliances with voice command switch. (3) Multiple Timing: The smart switch provides schedule, sunrise/sunset/circulate timer mode to avoid unnecessary power consumption and achieve power saving
• Operation Mode: ON-OFF
• Current Rating: 50 Amps
• Operating Voltage: 120 Volts (AC)
• Contact Type: Normally Open
• Connector Type: Screw Tightening​
• Brand: TONGOU
• Switch Type: Smart Zigbee Switch
• Terminal: Screw
• Material: Nylon PA66
• Item dimensions L x W x H: 3.94 x 0.98 x 3.15 inches
