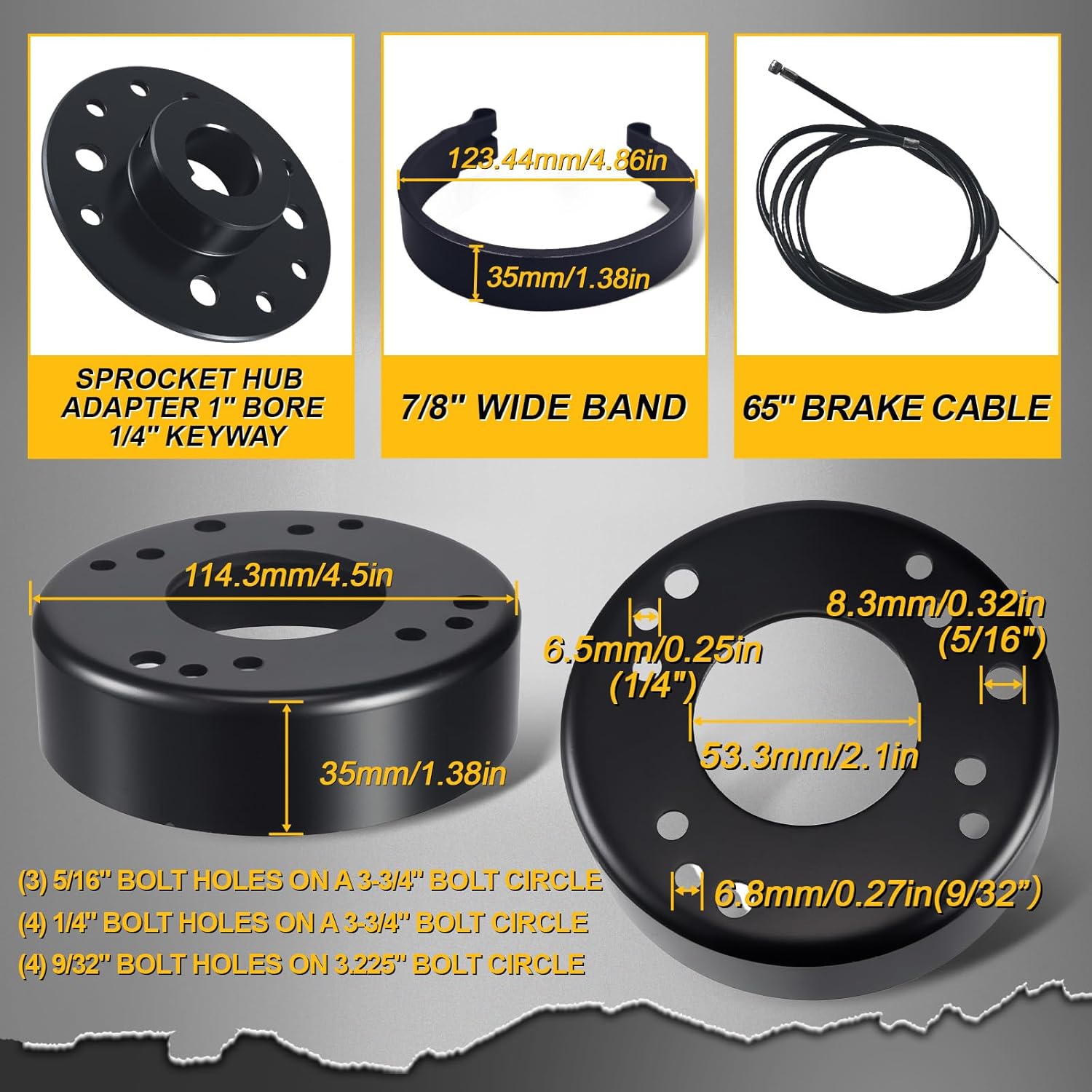

4.5" Rear Drum Brake Band Cable Kit with Sprocket Hub Adapter 1" Bore 1/4" Keyway For Go Kart Cart Drift Trike Mini Bike Dune Buggy Quad ATV For Predator 212cc 196cc 5.5hp 6.5hp Parts

Specifications

• For Go Kart Cart Drift Trike Mini Bike Dune Buggy Quad ATV For Predator 212cc 196cc 5.5hp 6.5hp Parts
• Bolt pattern is on a 3.75" bolt circle.
• 3 hole on 3.75" pattern; 4 hole on a 3.75″ diameter bolt circle; 4 hole on a 3.228″ bolt circle to match the mini-hub
• Size: 60" Housing; 65" Cable; 1" Bore 1/4" Keyway Sprocket Hub Adapter
• The brake drum has universal mounting hole pattern, those 8 bolt holes will match those on you wheel brake hub.There is a hole on either end of the brake band. One end fastens to a stud mounted on the cart, but is still able to pivot, and the other end fastens to your brake rod. Align the key ways in the sprocket and then bolt a sprocket to it, and axle install a key in the key way in the sprocket and in the axle shaft then tighten the set screws.
• Package Include: 1 x brake drum, 1 x brake band, 1 x brake pin, 1 x brake cable, 1 x sprocket hub, 1 x keyway, 4 x screws, 4 x nuts
