Ampinvt 5000W Off Grid Solar Inverter 48Vdc to 120V, Pure Sine Wave Inverter inbuilt 100A MPPT Solar Charge Controller Max PV Input 5500W, Support up to 6 in Parallel, Lead Acid Lithium Battery

Specifications

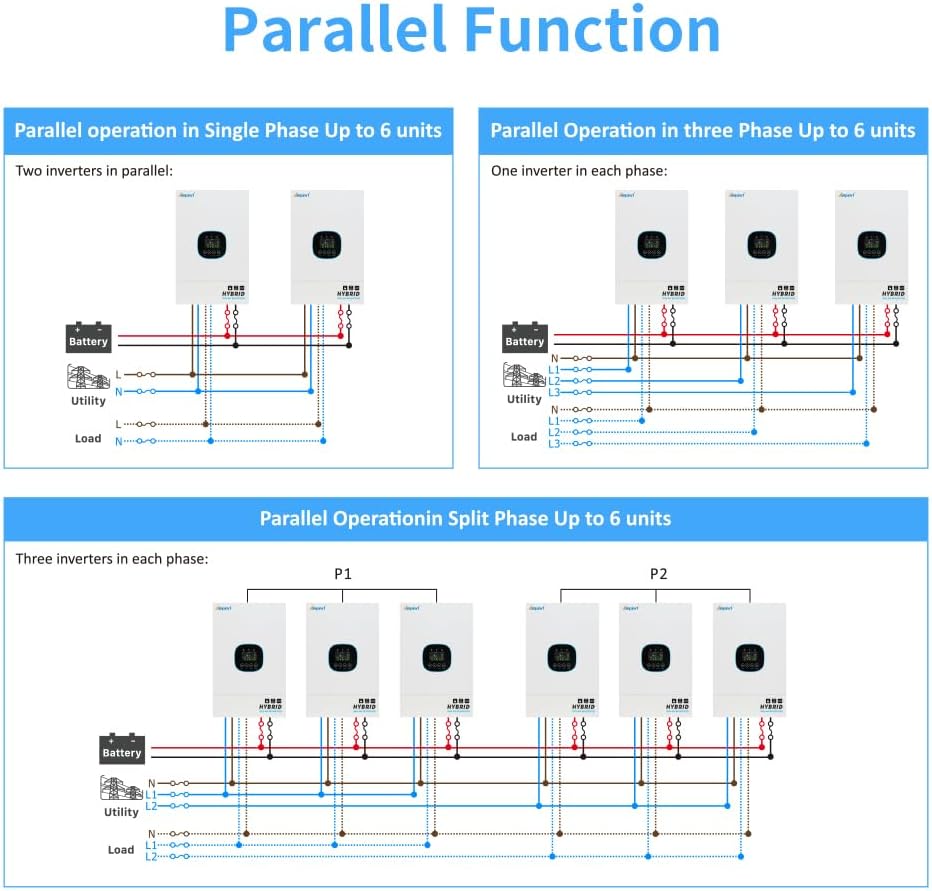

• This Pure Sine Wave Solar Inverter is a combination of an inverter, ac battery charger , MPPT solar charge controller and AC auto-transfer switch. Support Single-phase,Split Phase and Three-phase 120/208V/240Vac Output, High transfer efficiency is above 92%.
• 100A MPPT controller delivers up to 98% tracking efficiency and supports charging for 48V lead-acid (Seal, AGM, Gel, Flooded), lithium (LiFePO4) batteries. Max.PV Power：5500W, PV Input Voc:60-500V, Max PV Charging Current: 100A，with 40A AC charger
• 3 Work Modes: PV load priority mode / Inverter priority mode / PV priority mode. 4 Charging Modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
• Communication Ports (RS485/WIFI & USB): RS485/WIFI: Enables communication with monitoring hosts, lithium BMS, or mobile apps via optional modules for real-time data and parameter adjustment. USB: Connects to PC software for configuration; requires CH340T driver installation.
• Dry Contact Control: Automatically starts/stops the diesel generator based on battery voltage. Normally closed (NC-N) and normally open (NO-N) contacts change state when voltage is low, supporting resistive loads up to 125VAC/1A, 230VAC/1A, or 30VDC/1A.
• Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection.
