100Amp 110V AC Dual Power Automatic Transfer Switch, ATS 2P Manual Changeover Electrical Switch, Solar Back Up Power Auto Selector Overvoltage, Undervoltage 50/60Hz CE Certified

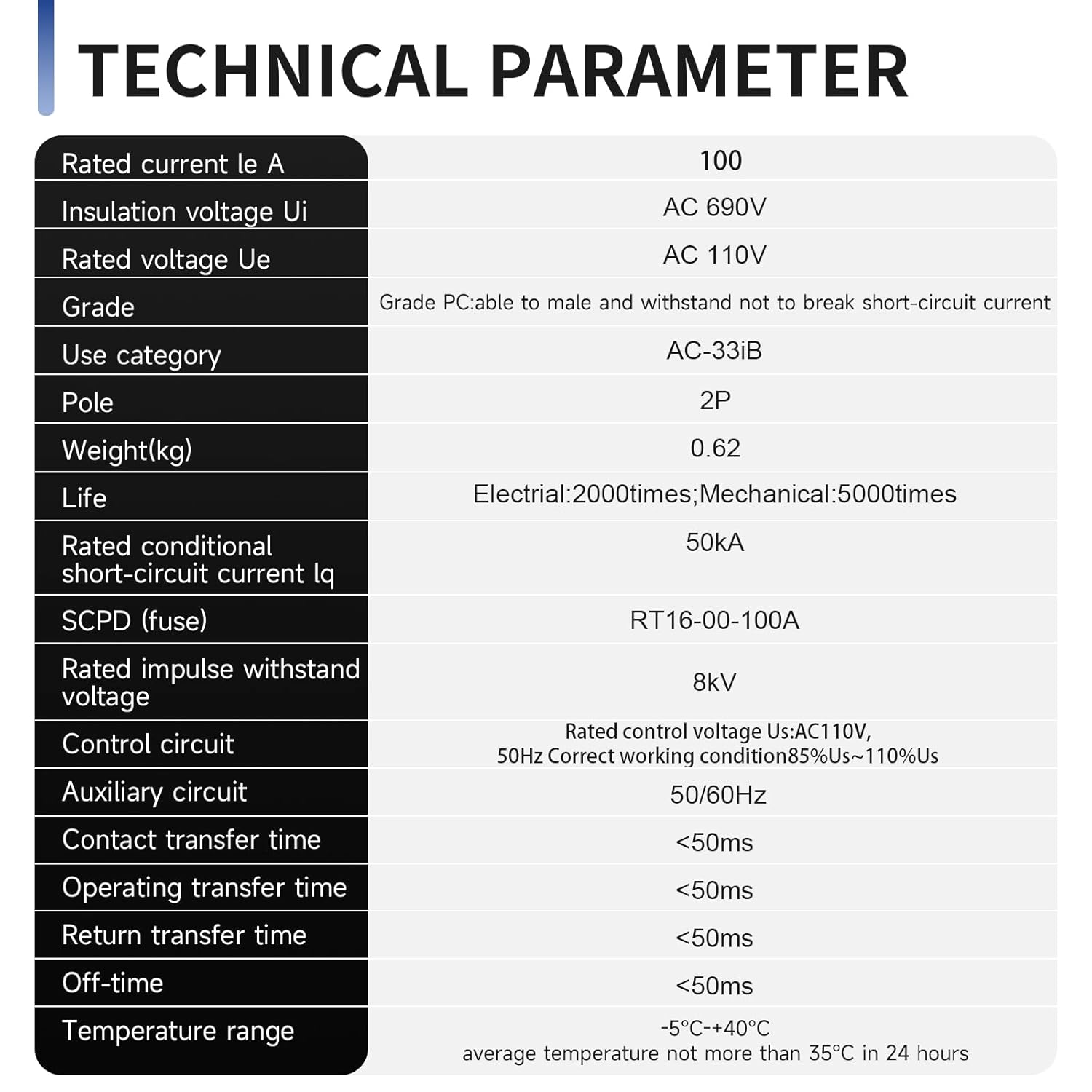

Specifications

• FUNCTIONS AND FEATURES: The ATS automatic transfer switch is a PC-class, low-frequency transfer switch designed for automatic or manual switching between two power sources. automatic transfer switch 100A can detect the functioning of either the primary or backup power source. transfer switch switches power sources (either mains or inverter) within 0.05 seconds, ensuring uninterruptible power supply. If the primary power source experiences an abnormality, the backup source immediately takes over, ensuring continuity, reliability, and safety. When the primary power source returns to normal, 100Amp ats transfer switch 110V automatically switches back to the primary source
• AUTOMATIC MODE: the Automatic Transfer Switch (ATS) is activated and begins continuous power monitoring. It prioritizes the primary power source (L1). In the event of a failure or irregularity with L1, the ATS will automatically and seamlessly transfer the electrical load to the backup power source (L2).Once the primary power source L1 is restored and stabilized, the ATS will then automatically transfer the load back from L2 to L1, ensuring a return to normal operation.
• Manual Mode: For manual operation, first confirm the switch is in "Manual" mode. When power is L1 off, just flip the switch to the "L2" position. The connection is made automatically, making the process simple and convenient.
• 110V OVER AND UNDER-VOLTAGE PROTECTION: 2Pole dual power automatic transfer switch 110v designed for home track installation, dedicated to PZ30 distribution box. dual power automatic transfer switches is suitable for 50/60Hz dual power grid. auto dual power transfer switch working current is between 6A-100A. 110V/50Hz Undervoltage value: 85V, Recovery value: 95V; Overvoltage value: 145V, Recovery value: 130V (± 5V)
• MULTI-SCENARIO APPLICATION：This dual-power automatic transfer switch (ATS) ensures a stable power supply and is suitable for use in situations where power outages are unacceptable. ac 110v automatic transfer switch is suitable for home power protection, small shops/convenience stores, medical equipment power supply, data centers and emergency systems, uninterrupted production line operation, photovoltaic microgrids, and indoor Rv, Lv, Cn Public/Backup Power and outdoor
• Quality assurance and worry-free after-sales: Made of high-quality PA6, it has high strength, high temperature resistance; it is lightweight but sturdy. we provides a 30-day no-reason return and a 3-year warranty for this product to ensure that you have a worry-free shopping experience. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to contact us
• Operation Mode: ON-OFF-ON
• Current Rating: 100 Amps
• Operating Voltage: 110 Volts (AC)
• Contact Type: Normally Open
• Connector Type: Plug In
• Brand: Sezbaifles
• Switch Type: Automatic Transfer Switch
• Terminal: Screw
• Material: Acrylonitrile Butadiene Styrene, Copper
• Item dimensions L x W x H: 5 x 4 x 0.98 inches
