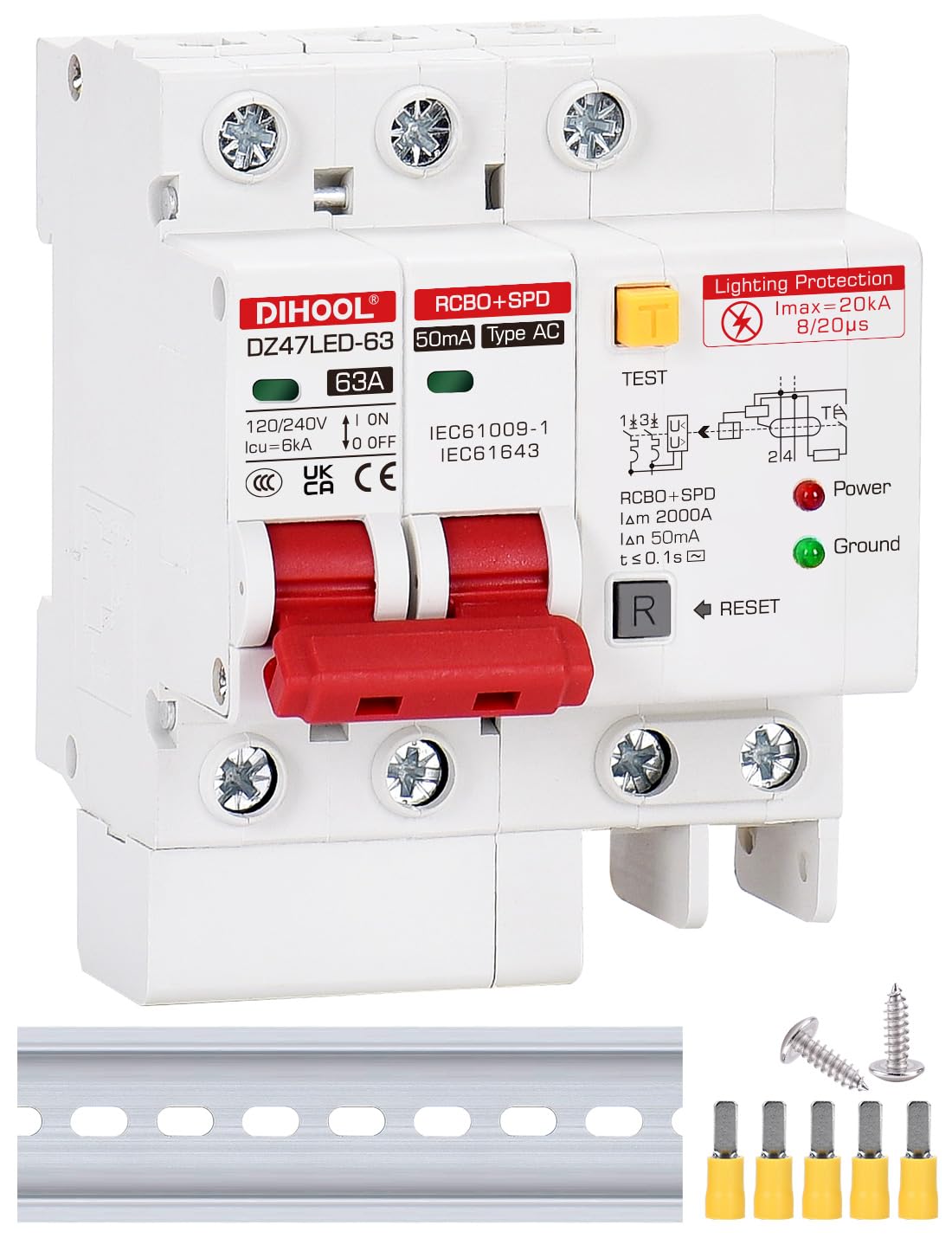

DIHOOL Ground Fault Circuit Breaker with Voltage Surge Arrester Protection, 63 Amp, 2 Poles, AC 120V-240V, DIN Rail Mount Residual Current Circuit Breaker
15 700 ֏
Mar. 9 - 12 In Armenia
Delivery & taxes included
Condition: new
Specifications
- 5 Protection Functions: Overcurrent protection, Surge orotection, 30mA Leakage Protection, Short Circuit Protection, circuit isolation
- Rated working voltage 120V/240V, rated current 63Amp, maximum voltage 500V, lightning protection Type 2 20kA,Leakage tripping current 30mA

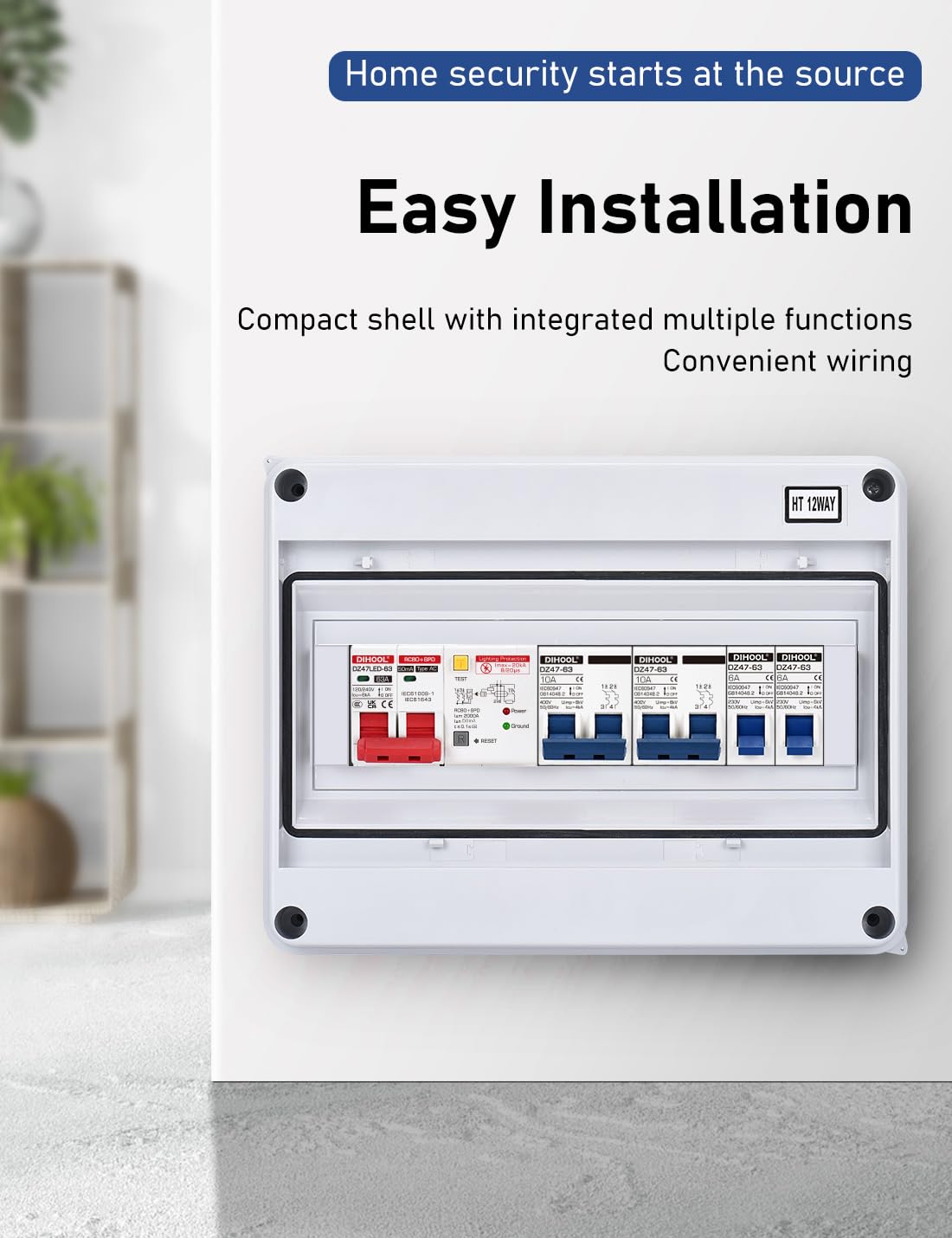

- Installation Method: 35MM DIN Rail, Product Size: 72MM x 95MM x 77MM, With 5pcs Terminals
- After the circuit breaker wiring is completed, open the handle, and the red LED light and green LED light will light up to indicate normal operation. After powering on, press the T button to test the leakage function
- Wiring: Upper input, Bottom output, with both input and output ground wires connected to the ground terminal simultaneously
15 700 ֏
Mar. 9 - 12 In Armenia
Delivery & taxes included
Condition: new
Specifications
Lens Color
63 Amp
Brand
DIHOOL
Current Rating
63 Amps
Product Dimensions
4.17"D x 3.03"W x 3.27"H
Circuit Breaker Type
Standard
Mounting Type
DIN Rail Mount
Number Of Poles
2
Manufacturer
DIHOOL ELECTRIC
Voltage
120 Volts
Item Weight
12 ounces
Item model number
DZ47LED-2PE-63A-30MA
Date First Available
January 5, 2024
