DIHOOL AC DC Circuit Breaker with IP65 Din Box for Solar Systems, 15 Amp 2 Pole 12V-400V, Non Polarized, Solar Panel Disconnect Switch, PV Array Shut Off Isolator

Specifications

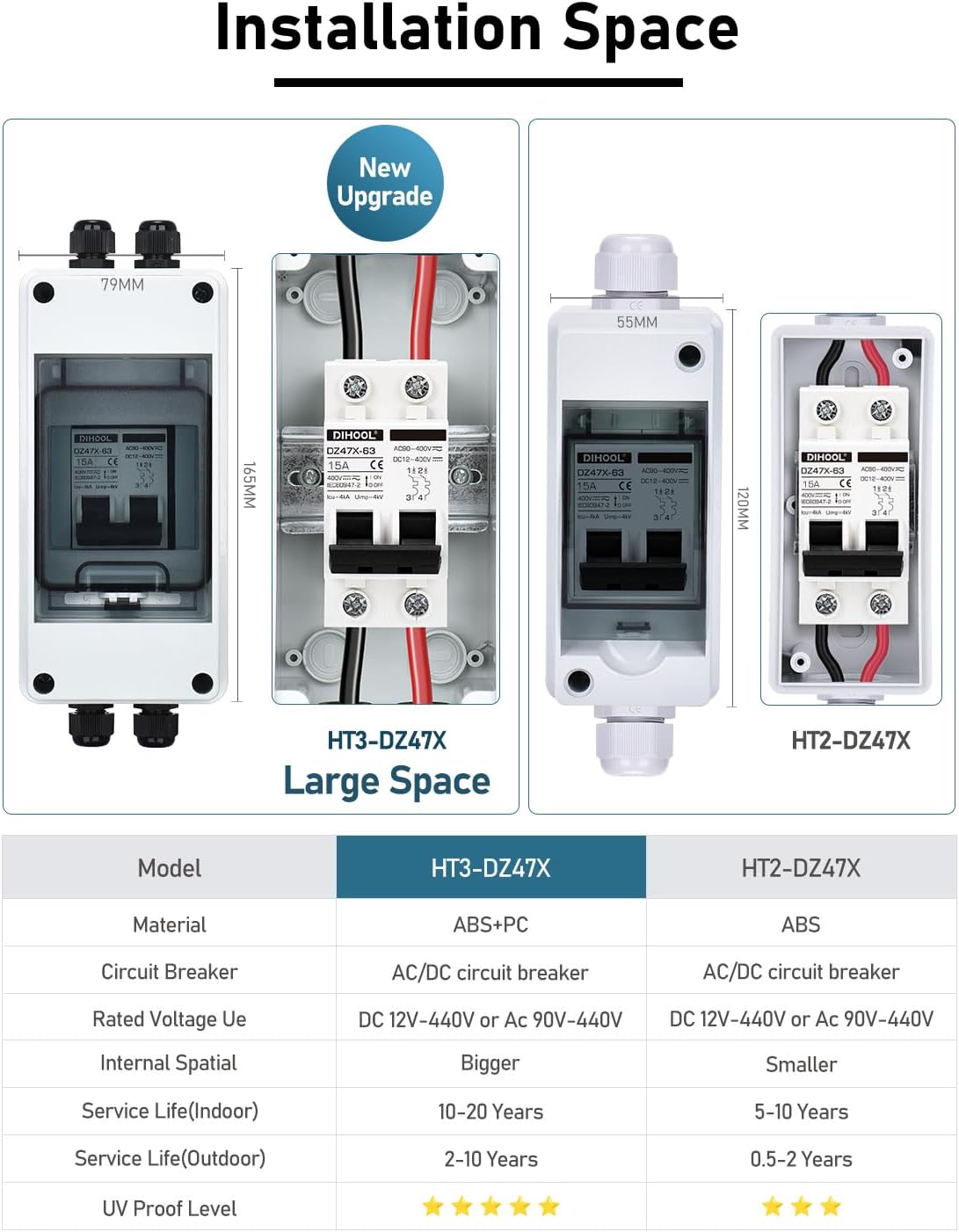

• IP65 Circuit Breaker DIN Rail Box: Made of PC+ABS material, it has high impact resistance, high heat resistance, good dimensional stability, V1 grade flame retardant, acid and alkali resistance, solvent resistance, and UV resistance. the transparent cover also make it easy to check the status of the circuit breaker.and it uses 3 way box with larger space for convenient for wiring and installation than 2 way size
• Miniature Circuit Breaker: built-in arc squelching magnet which enables the high arc extinguisher,flame-retardant enclosure, silver contacts, and sufficient pure copper coils to ensure its high quality.
• Multiple protection: isolation, short circuit protection(48-400VDC OR 90-400VAC), and overload protection,C-curve trip,thermal magnetic trip,it can be used for 12V-400V DC or AC 90-400V systems.

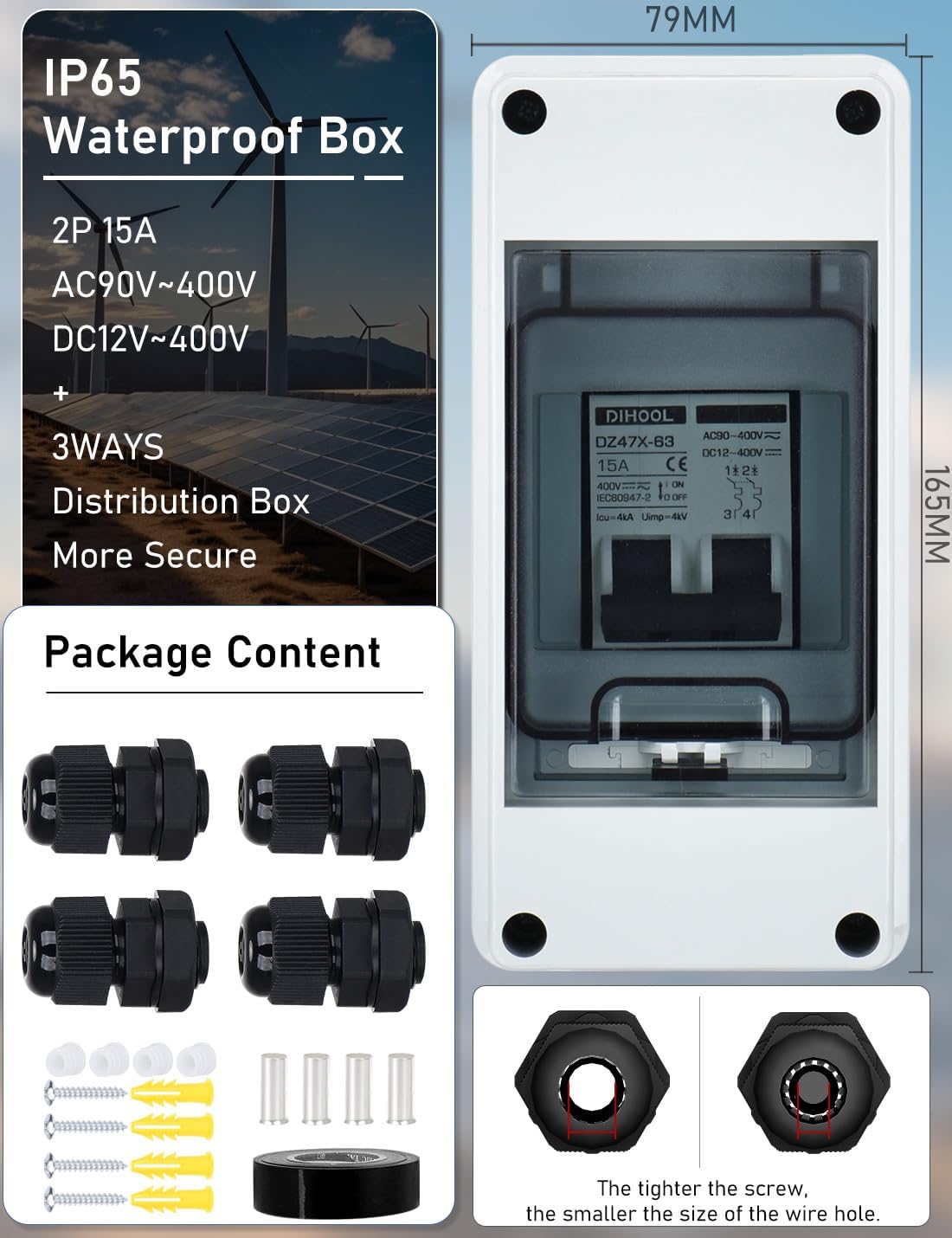

• Come with 2x screws for easy mounting and 4x crimp ferrules for wiring to make sure that the wires are tightly connected. 4 Rubbers to block up the 4 screw holes at the box cover to prevent the screws from rust and enhance the waterproof. 1x insulating tape to seal the cable with gland if the cable too thin.

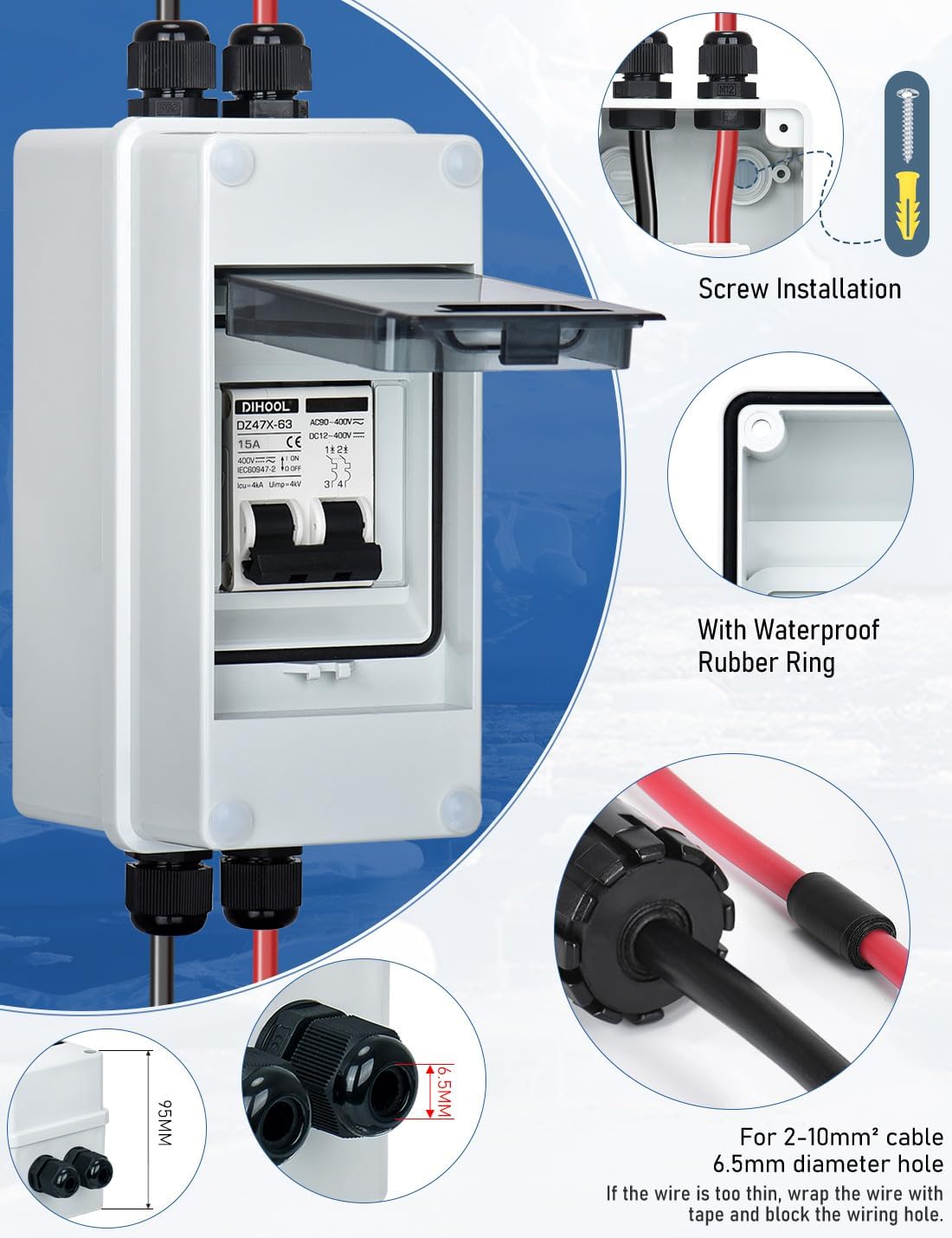

• Widely Cable Range: 2 types IP68 cable glands for choose. cable glands with one hole suitable for 2 Conductor wire range from 9-16mm/0.35 - 0.63inch. cable glands with two holes suitable for wire range from 4-6mm/0.15 - 0.23inch.
• The breaker box is suitable for photovoltaic solar panel array,Solar Charge Controller,Batteries,Power inverter,household lighting, small motor control
• Non-polarized circuit breakers do not require polarity distinction and can be connected in either direction, simplifying installation and reducing wiring errors. They are particularly suitable for applications where polarity may reverse, such as:Reversible motors,Battery charge/discharge switching.Bidirectional current protection including:EV charging/discharging circuits,Solar power systems (where battery current direction reverses),Industrial reversible drive systems.
