WLCA12-2-Q Adjustable Roller Lever Arm Limit Switch 380V 10A NC-NO Momentary (Pack of 2)
20 200 ֏
Mar. 2 - 9 In Armenia
Delivery & taxes included
Condition: new
Specifications

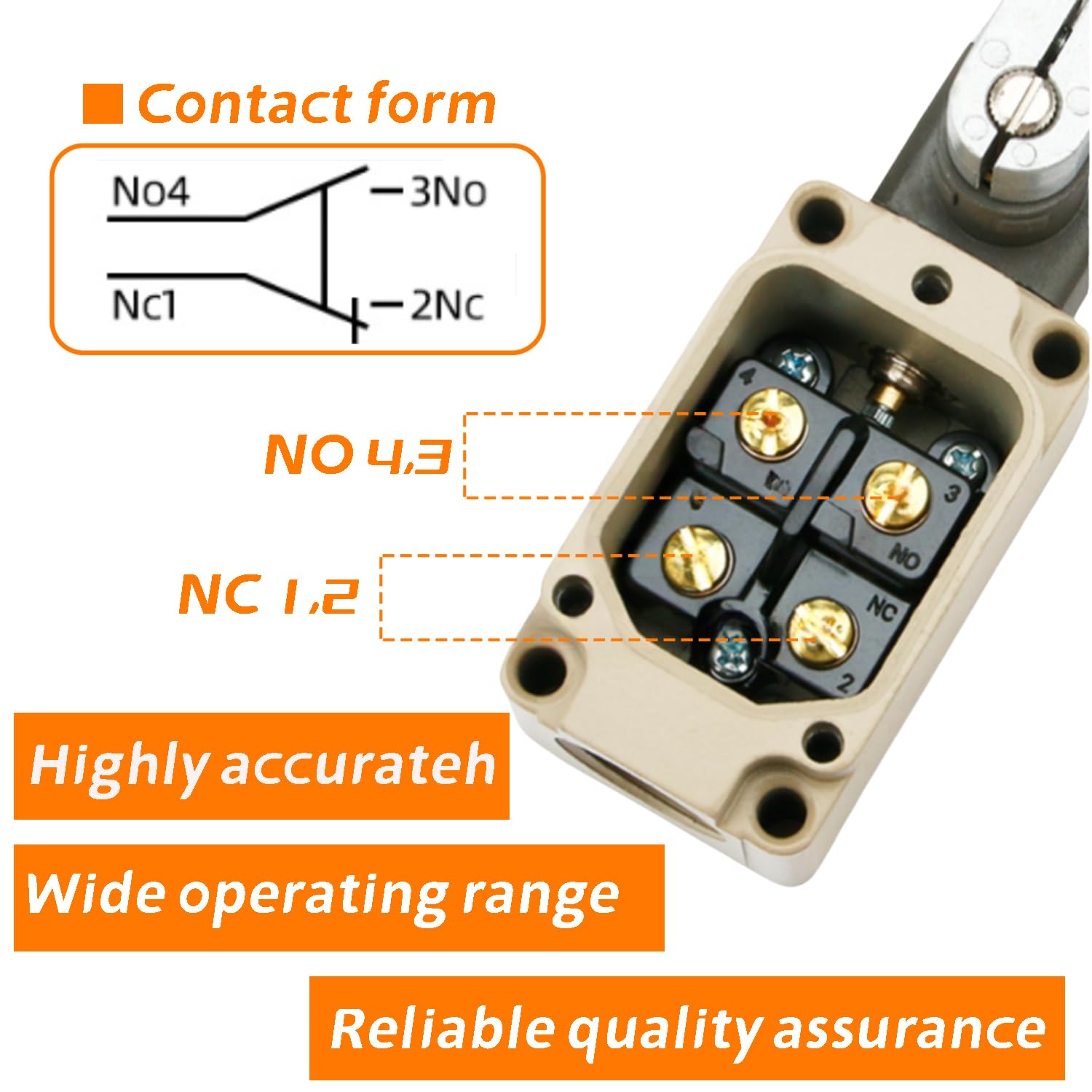

- 【Product】WLCA12-2-Q Limit Switch, 1 NO 1 NC.
- 【Rated Value】UI: 380V, Ith: 10A. AC-15 Ue: 250, le: 6A; DC-13 Ue: 220, le: 0.3A.
- 【Application】 Double-circuit type of limit switch, is widely used, can be used in various mechanical to monitor the position of moving parts of machines and plant.
- 【High-Quality】With strong aluminum cast outer shell, Built-in contact stand has double-spring, so it has long mechanical life, Structure preventing oil, water and pressure.
- 【Roller Lever】The WLCA12-2-Q switch comes with an adjustable rotating roller lever, can be rotated to the left and to the right, which you can adjust according to your own needs. (25-89°）.
- Operation Mode: ON-OFF
- Current Rating: 10 Amps
- Operating Voltage: 380 Volts
- Contact Type: Normally Open
- Connector Type: Plug In
- Brand: HUAREW
- Switch Type: Arm Limit Switch
- Terminal: Screw
- Material: Aluminum
- Circuit Type: 2-way
20 200 ֏
Mar. 2 - 9 In Armenia
Delivery & taxes included
Condition: new
Specifications
Size
2 Pcs
Operation Mode
ON-OFF
Current Rating
10 Amps
Operating Voltage
380 Volts
Contact Type
Normally Open
Connector Type
Plug In
Brand
HUAREW
Terminal
Screw
Circuit Type
2-way
Contact Material
Copper, Brass
Number of Positions
2
Control Method
Touch
Wattage
3800 watts
Unit Count
1.0 Count
Number of Items
1
Manufacturer
HUAREW
Vehicle Service Type
Industrial machinery, trucks, construction equipment
Control Type
Automatic
Compatible Devices
Industrial machinery, automation systems, electrical equipment
UPC
791162824886
Package Dimensions
6.02 x 5.98 x 1.73 inches
Item Weight
1.43 pounds
Date First Available
December 21, 2024
