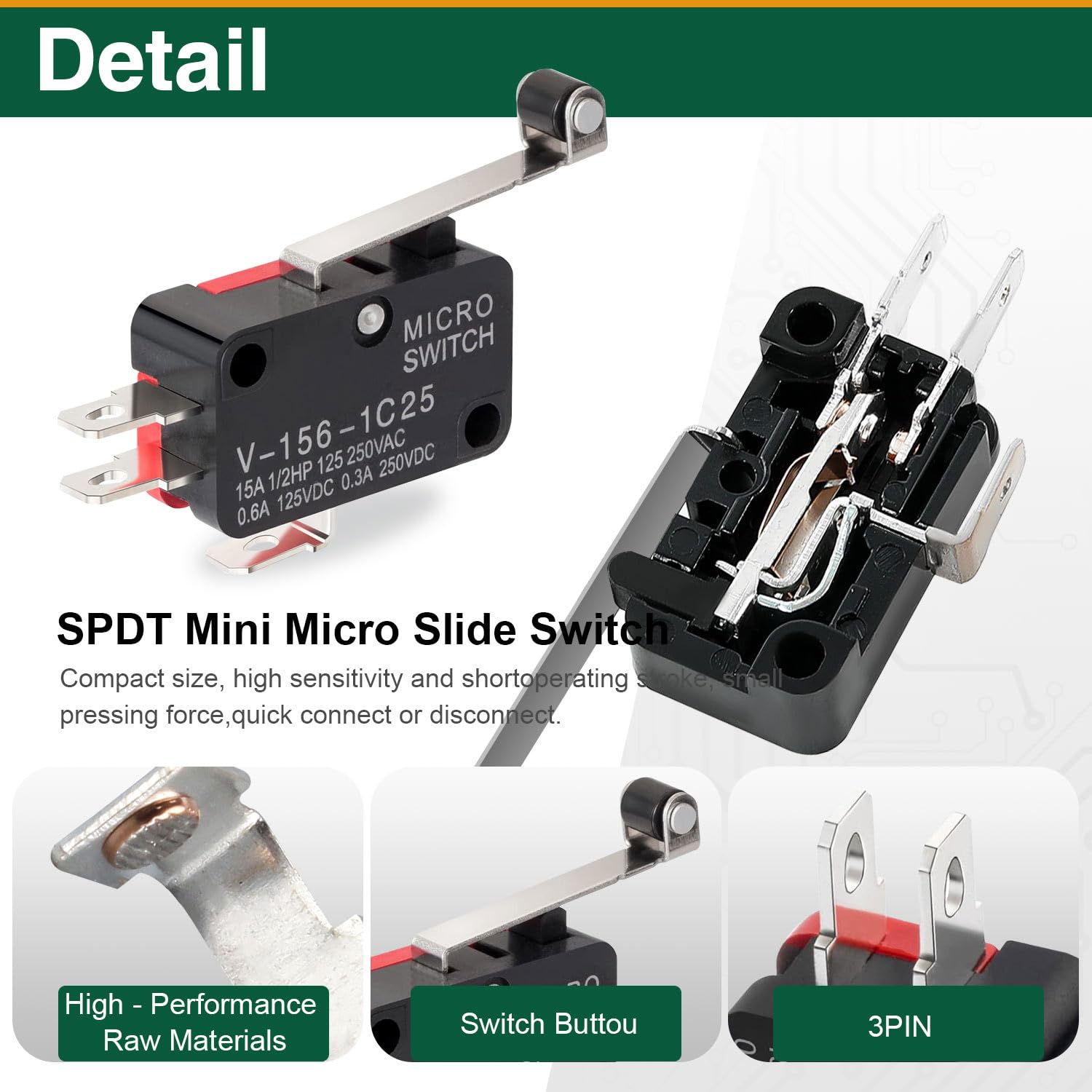

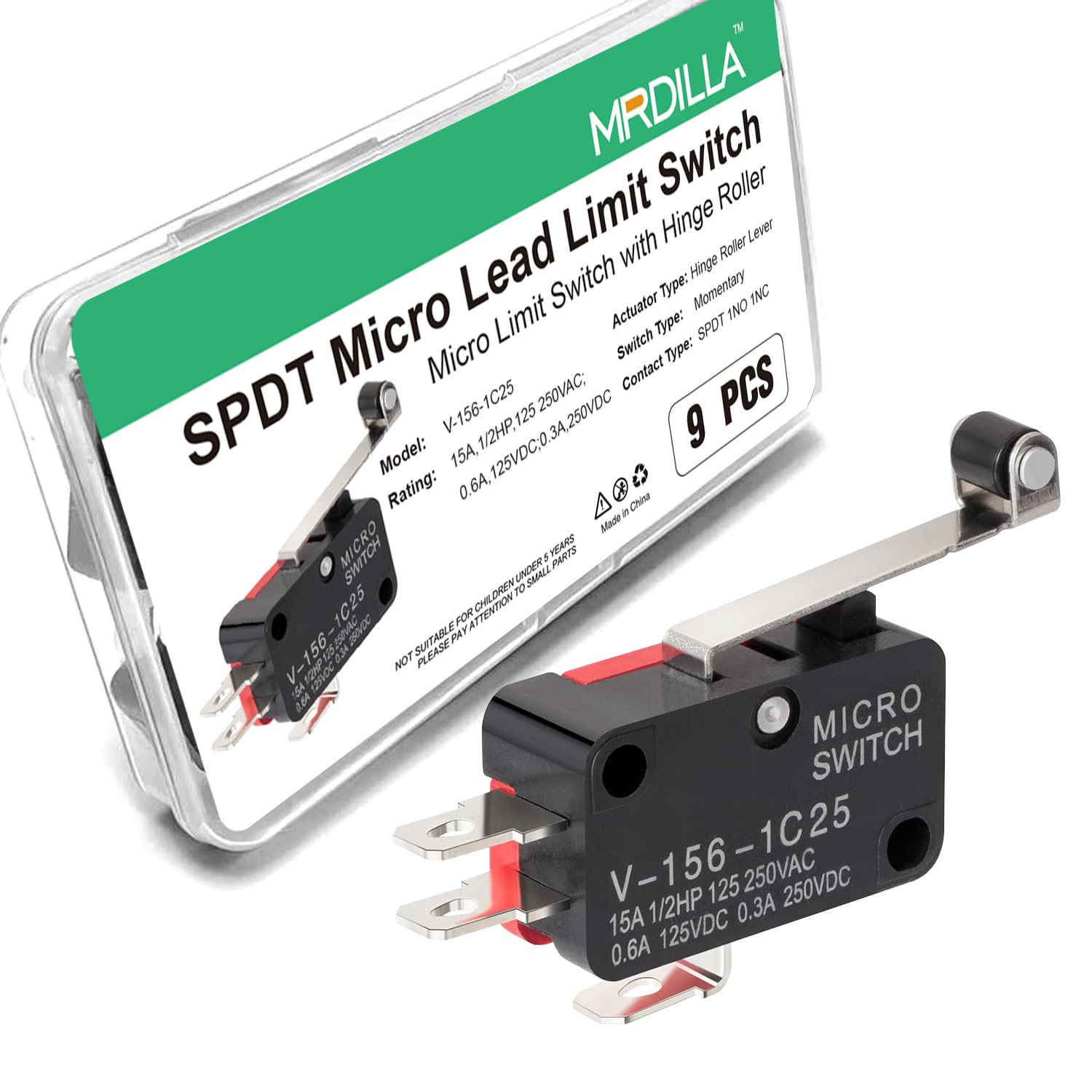

9PCS SPDT Momentary Limit Switch with Roller Lever Arm, 15A 125/250VAC, 3 Pin 1NO 1NC, V-156-1C25 for Industrial Automation, Mechanical Equipment

Specifications

• Product Information: Model Number: V-156-1C25. Rated for 15A, 1/2HP; 125/250V AC; 0.6A, 125V DC; and 0.3A, 250V DC. Operating temperature range: -25°C to 85°C. Contact type: SPDT 1NO 1NC contact. Actuator type: Roller Lever Arm
• Compact and Durable: Measuring 1.1" x 0.39" x 0.63",Actuator size: 1.1" x 0.18", this microswitch features a rugged ABS housing and silver contacts for optimal conductivity. The dustproof design ensures long-lasting performance even in harsh environments
• Versatile Applications: Our limit switches with Roller Lever Arm excels in automation control systems, providing precise control over mechanical components in applications such as Robotic Arms and Automation Arms
• Easy Installation and Efficient Operation: With a plug terminal or welding wiring option, installation is a breeze. The short operating stroke, low actuation force, and Roller Lever Arm actuator enable fast and precise switching
• Reliable Performance: Engineered with high-precision manufacturing, this micro push button switch boasts low power consumption and a long mechanical lifespan, delivering reliable performance in demanding applications
• Operation Mode: ON-OFF
• Current Rating: 15 Amps
• Operating Voltage: 250 Volts
• Contact Type: Nc,no
• Connector Type: Plug Terminal, Welding
• Brand: Mrdilla
• Switch Type: Push Button
• Terminal: Through Hole
• Material: Metal, Plastic
• Item dimensions L x W x H: 1.1 x 0.39 x 0.63 inches
