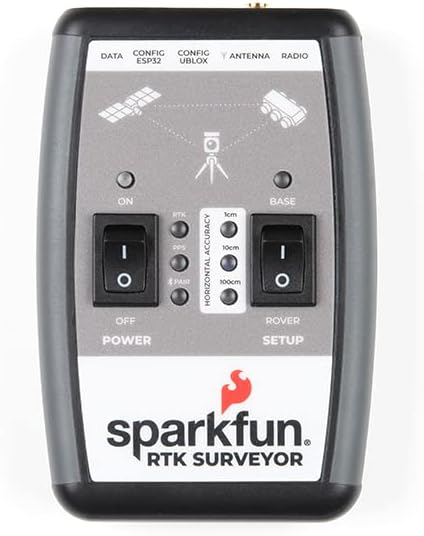

SparkFun RTK Surveying Kit GNSS Receiver: ZED-F9P Transceiver: ESP32 WROOM GNSS L1/L2 Multi-Band Antenna - TOP106 USB A to C Cable and Wall Charger

Specifications

• Kit includes all the antenna bits, cables and chargers: Jump right into the field
• Important: SparkFun RTK Surveyor NOT designed for permanent outdoor mounting; Mount L1/L2 antenna outside; Run SMA cable to RTK Surveyor located inside protected from the elements; See Online Guide: Creating a Permanent Base for more information

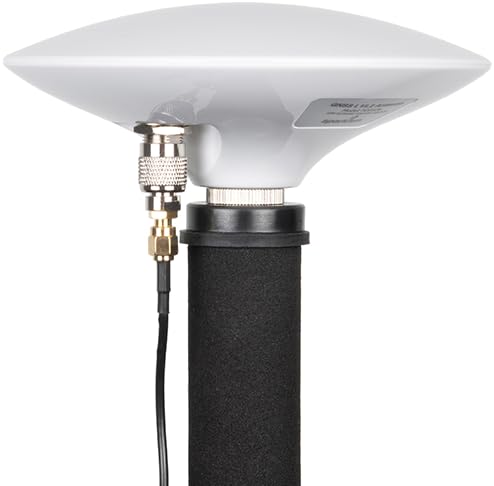

• Kit Includes: 1x -RTK Surveyor; 1x -GNSS L1/L2 Multi-Band Antenna - TOP106; 1x -Antenna Interface Cable - SMA to TNC (300mm); 1x -1/4" to 5/8" Antenna Thread Adapter; 1x -USB Wall Charger - 5V, 2A; 1x -USB A to C Cable - 0.8m; 1x -Data Cable. -1x Radio Cable
• Features: Concurrent reception of GPS, GLONASS, Galileo and BeiDou; Receives both L1C/A and L2C bands; Current: 68mA - 130mA (varies with constellations and tracking state); Time to First Fix: 25s (cold), 2s (hot); Max Navigation Rate: PVT (basic location over UBX binary protocol) - 25Hz, RTK - 20Hz; Raw - 25Hz; Horizontal Position Accuracy: 2.5m without RTK; 0.010m with RTK

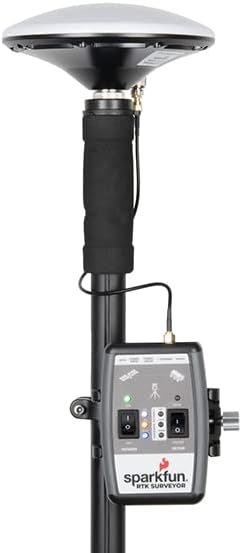

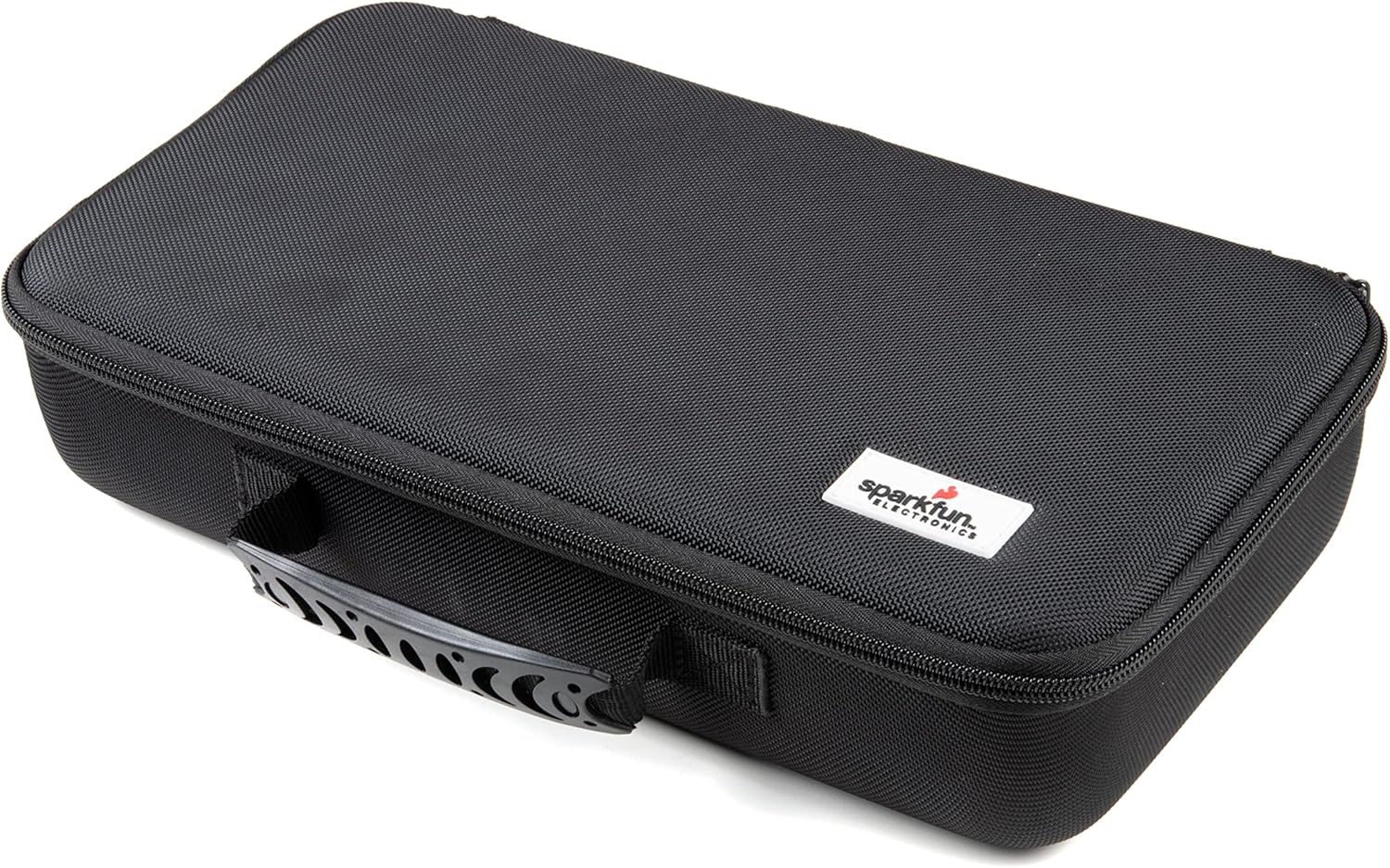

• Handy carrying case: Protect most expensive bits: Quickly attach the L1/L2 antenna and RTK Surveyor housing to the pole or tripod of your choice
• Charge from any USB port or adapter: Charge circuit rated 1000mA so USB 2.0 ports will charge at 500mA and USB 3.0+ ports will charge at 1A
