3/4’’ Air Piping Fittings, Brass Ball Valve, 3/4’’× 3/4’’ Piping, Shut-Off Fittings Fit for Shop Garage Compressed Air Line System
14 500 ֏
Mar. 9 - 12 In Armenia
Delivery & taxes included
Condition: new
Specifications

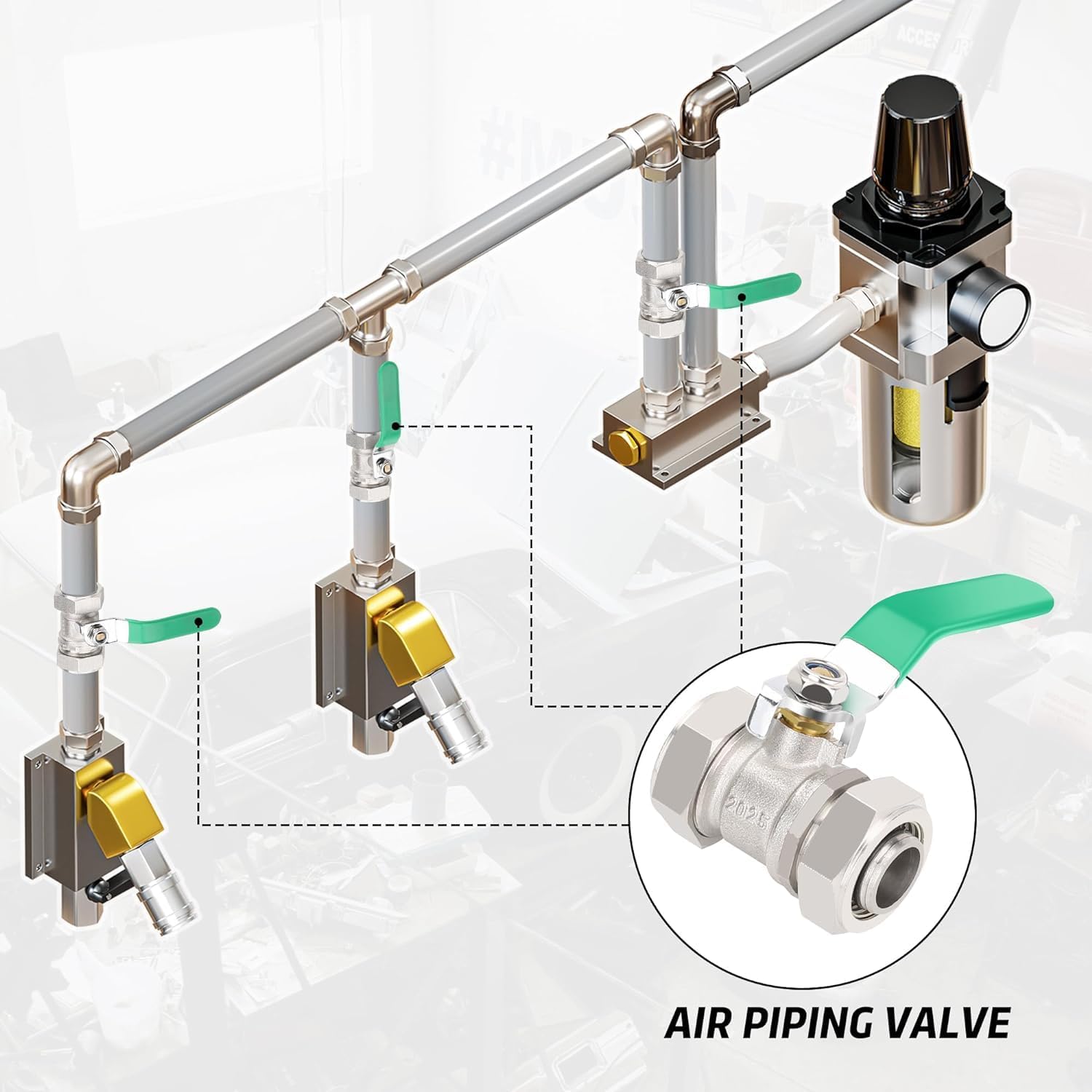

- This 3/4’’ x 3/4’’ air piping shut-off valve feature a quickly cut off the air supply in case of emergencies or unexpected incidents, preventing further damage or accident.
- Material:This air piping fittings are made of nickel-plated brass for durability and corrosion resistance.
- Sealing: Double O-ring compression style fitting, no glue, soldering or crimping needed, piping can be removed from fitting if needed.
- Size: 3/4 Inch air piping size with 3/4 inch air piping size, shut-off ball valve type, 200PSI Working Pressure.

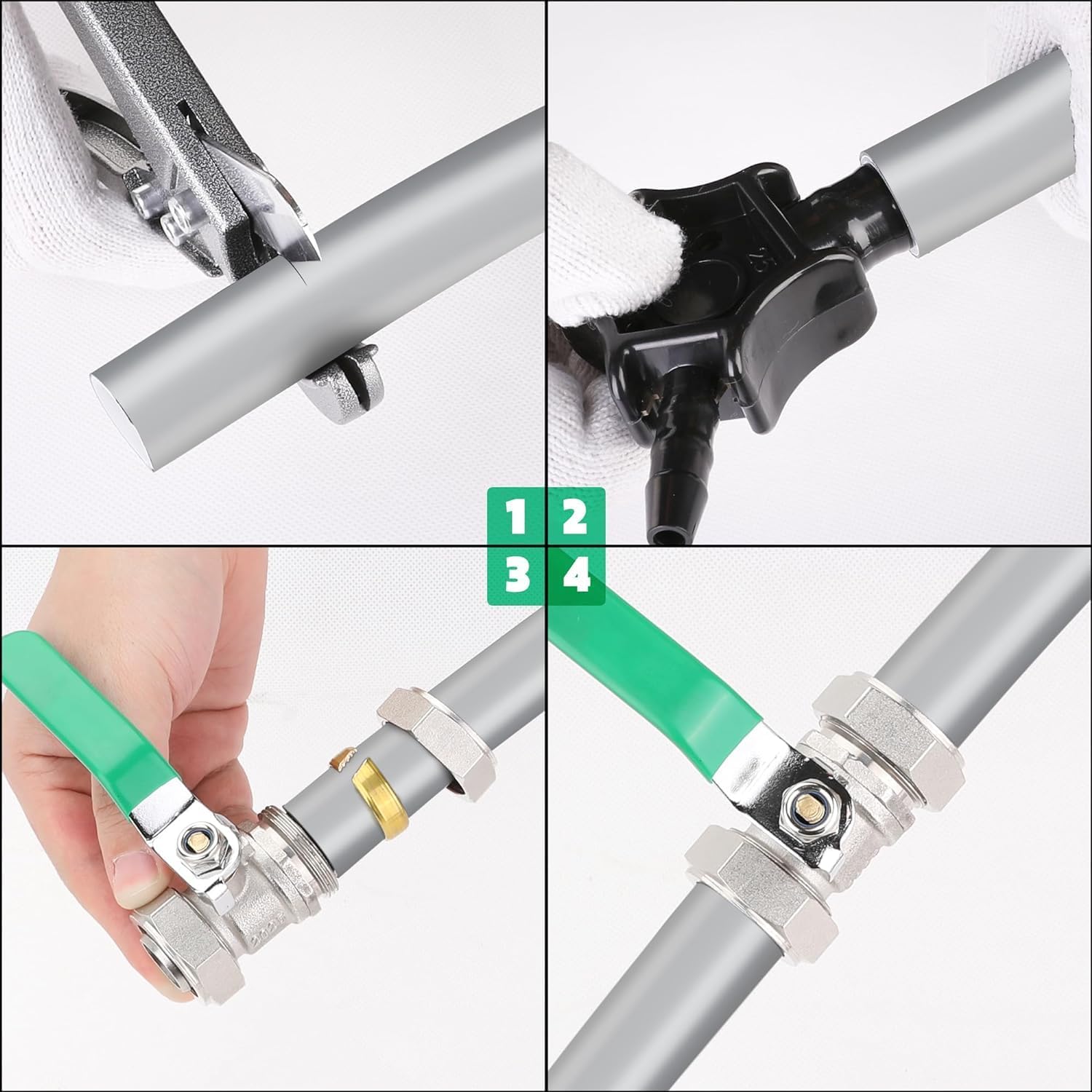

- Easy to Install: Bevel the inside of the piping by inserting the reaming tool and rotating it. Remove nuts and split ring from fittings and place on piping; Push the fitting onto the piping and fully against the shoulder of the fitting; Turn the nut finger tight. Put a reference mark on the nut and fitting body; Tighten nut with wrench a minimum of 3/4 of a turn or until tight.
- Material: Brass
- Brand: ANCIMOON
- Exterior Finish: Plated
- Inlet Connection Size: 3/4 Inches
- Inlet Connection Type: Compression
- Outlet Connection Type: Compression
- Maximum Operating Pressure: 200 Pound per Square Inch
- Number of Ports: 2
- Outlet Connection Size: 3/4 Inches
- Manufacturer: ANCIMOON
14 500 ֏
Mar. 9 - 12 In Armenia
Delivery & taxes included
Condition: new
Specifications
Pattern Name
New Package
Material
Brass
Brand
ANCIMOON
Exterior Finish
Plated
Inlet Connection Size
3/4 Inches
Inlet Connection Type
Compression
Outlet Connection Type
Compression
Maximum Operating Pressure
200 Pound per Square Inch
Number of Ports
2
Outlet Connection Size
3/4 Inches
Manufacturer
ANCIMOON
Part Number
AA-024
Item Weight
10.8 ounces
Package Dimensions
5.24 x 2.83 x 2.72 inches
Item model number
AA-024
Size
3/4 inches
Color
Sliver
Pattern
New Package
Power Source
air_powered
Item Package Quantity
1
Included Components
Air piping shut off valve fitting
Batteries Required?
No
Customer Reviews
4.5 out of 5 stars
Date First Available
March 1, 2024
