2pcs Arcade Harness 4.8mm (.187") Microswitch Terminals 2 Pin 8-Pin to 5-pin Conversion Harness Wires for Jamma MAME Bartop Cabinet Machines

Specifications

• This conversion harness is suitable for any joystick that features 4.8mm (.187") microswitch terminals.

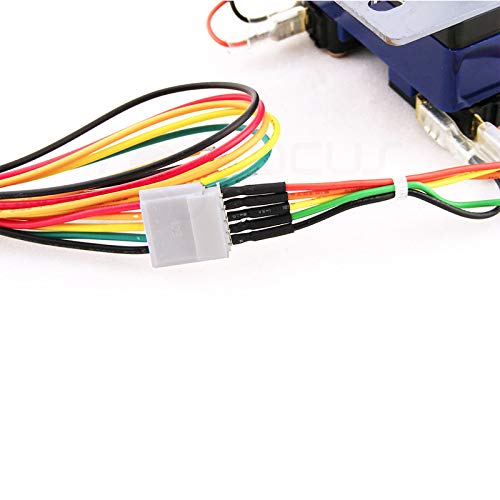

• The 4.8mm (.187") microswitch terminals 8-Pin to 5-pin Conversion Harness is the perfect choice for connecting joysticks with .187” microswitch terminals and interfacing them to a Sanwa JLF-H harness. Simply connect the harness to the .187” terminals on the joystick microswitches and the other end of this harness will slide into the existing Sanwa JLF-H or JST-XH harness in your fightstick.
• For microswitch based joysticks, each joystick has 4 x microswitches and each microswitch requires a separate ground and signal wire connection. This is different to a Sanwa JLF series joystick, which has its microswitches soldered on to a PCB and connects via a JLF-H 5 pin harness.
• By using this 8-Pin to 5-pin Conversion Harness, you can interface most joysticks with .187” microswitch terminals through to a Sanwa JLF-H or JST-XH cable, which makes connection simple.
• Interfaces to a Sanwa JLF-H or JST-XH cable. Converts joysticks with standard .187” microswitch terminals for use with a Sanwa JLF-H or JST-XH cable.
