Mirabox Wireless HDMI Transmitter and Receiver, RX Only

Specifications

• 【This is RX Only】【Support 1TX to 4RXs(Max)】【Wireless HDMI 1Transmitter and 4 Receiver】This wireless hdmi trasnmitter and receiver can support 1TX to 4RXs(Max),you can add more RXs as you need.Buy more RXs from this ASIN:B0DFY85Z62 .Noted:With the increase of RX, the wireless transmission distance will become shorter.Theoretically,line of sight distance: 1 TX to 1 RX wireless transmission distance: 200m(656ft); 1 TX to 2 RX: 60m(196ft); 1 TX to 3 RX: 30m(98ft); 1 TX to 4 RX: 20m(65ft).
• 【IMPORTANT: How to pair the TX and RX?】

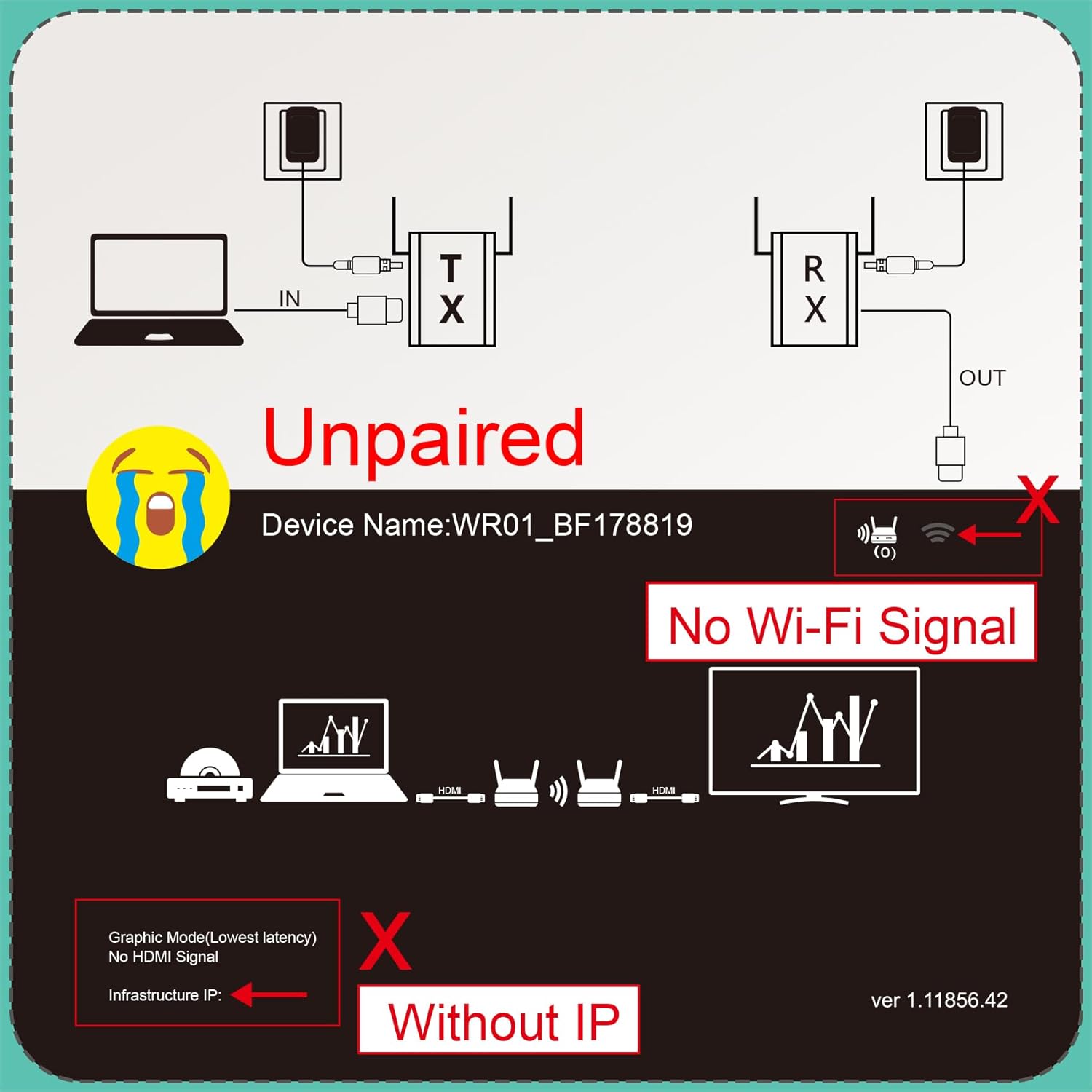

• 【Step1: No Paried, No signal, No IP】Noted: Each transmitter (TX) supports up to four receivers (RX). Each new receiver (RX) needs to be paired with the transmitter (TX) before the first connection.
• 【Step2, Power up the TX and RX】Noted: Must power up TX and RX first. Power up the TX & RX ( use 12V/1A power adapter), and then waiting for 5 seconds.
• 【Step3, Connect TX-IN and RX-OUT with HDMI cable】Connect the TX-IN and RX-OUT with HDMI cable as above, then waiting about 5-10s for auto-pairing.
• 【Step4: Re-plug the power adapter, paired successfully】Please connect the TX and RX as above, and re-plug the power adapter. When you see the IP address and Wi-Fi signal, device are pairing succeeded. Noted: Repeat the Step2 and Step3 to pairing the RX#2 RX#3 and RX#4. (RX#1-RX#4 should show the same IP address)
• Brand: Mirabox
• Connectivity Technology: wireless hdmi transmitter and receiver RX
• Controller Type: wireless hdmi transmitter and receiver RX
• Special Feature: wireless hdmi transmitter and receiver
• Compatible Devices: wireless hdmi transmitter and receiver RX
• Connector Type: wireless hdmi transmitter and receiver RX
• Audio Output Mode: wireless hdmi transmitter and receiver RX
• Surround Sound Channel Configuration: wireless hdmi transmitter and receiver RX
• Video encoding: wireless hdmi transmitter and receiver RX
• Supported Internet Services: wireless hdmi transmitter and receiver RX
