ExpertPower 10KW 48V - 120V/ 240V/ 208V Hybrid Solar Inverter | 12KW Solar PV Input, 10000W AC Output | Max. 60KW in Parallel | UL1741 | Built-in WiFi | Home, Cabin, Off-Grid, Grid-Tie Solar System

Specifications

• Hybrid Solar Inverter: Features a built-in MPPT solar charger with a 12KW maximum solar input and a 200A utility battery charger for optimal energy utilization. It supports two 6000W PV inputs, each handling up to 600V open circuit voltage from solar panels. This dual-input capability allows for greater flexibility and higher efficiency in solar energy collection, maximizing the power available for use or storage.
• Robust Specifications: Dual 100A MPPT charge controllers and a 10KW pure sine wave inverter ensure efficient operation. Supports two solar panel array inputs, simultaneously maximizing power from both sources. Offers a 10KW rated output (20KW surge), compatible with 120/208/240Vac. The ability to handle substantial power through its dual controllers allows for optimized solar energy usage, ensuring that your system operates at peak efficiency throughout the day.

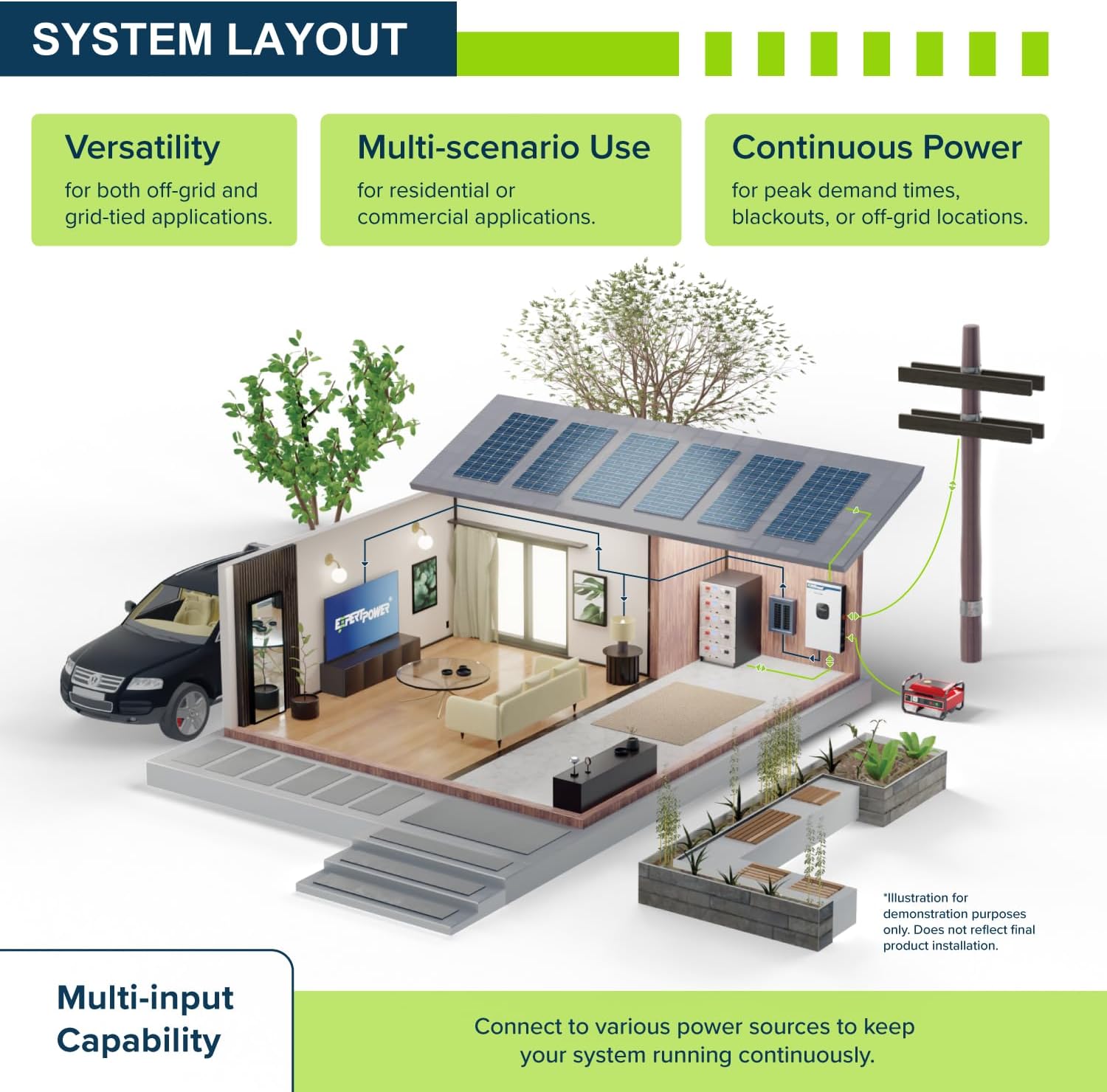

• Grid-Tie & Off-Grid Capabilities: Designed for both remote off-grid use and grid-tied residential or commercial applications, this inverter powers your home and offers protection during blackouts while helping save on energy costs. By supporting both grid-tied and off-grid operations, this inverter offers versatility in installation and potential cost savings by reducing reliance on grid power during peak demand times or during blackouts.
• Safety and Reliability: Delivers a reliable pure sine wave output (120V, Split Phase 120V/240V, or 3-Phase 208V) adhering to UL1741 and IEEE1547 standards. Rated IP65 for protection against dust and water, ensuring durability in any environment. Compliance with rigorous safety standards and an IP65 rating ensure that the inverter operates safely and efficiently, even in harsh environmental conditions.
• Adaptable Power Supply: Efficiently powers loads from PV arrays or the AC grid, even without a connected battery. Compatible with various battery types including SLA, AGM, GEL, and Lithium LiFePO4. The inverter's compatibility with multiple power sources and battery types makes it a versatile choice for any setup, ensuring reliable power regardless of your system configuration.
• Split Phase Operation: Offers both 240V and 120V from a single inverter, accommodating large appliances and HVAC systems without the need for multiple units maximizing space and materials. The split-phase operation allows you to power both standard and high-voltage appliances from a single source, simplifying installation and reducing equipment costs.
• Enhanced Parallel Functionality: Features a parallel kit that allows up to 6 units to connect, boosting the system’s capacity to a maximum of 60KW to meet diverse energy needs regardless of application. This scalability feature is ideal for growing energy needs, allowing for expansion as your power requirements increase without the need for an entirely new system.
• Advanced Connectivity: Wi-Fi-enabled for remote monitoring and management via a dedicated app on iOS or Android devices. Includes a detachable LCD control module and multiple communication ports (RS485, CAN-BUS, RS232) for easy integration with BMS systems. With advanced connectivity options, you can easily monitor and adjust your system settings from anywhere, enhancing convenience and control over your energy usage.
