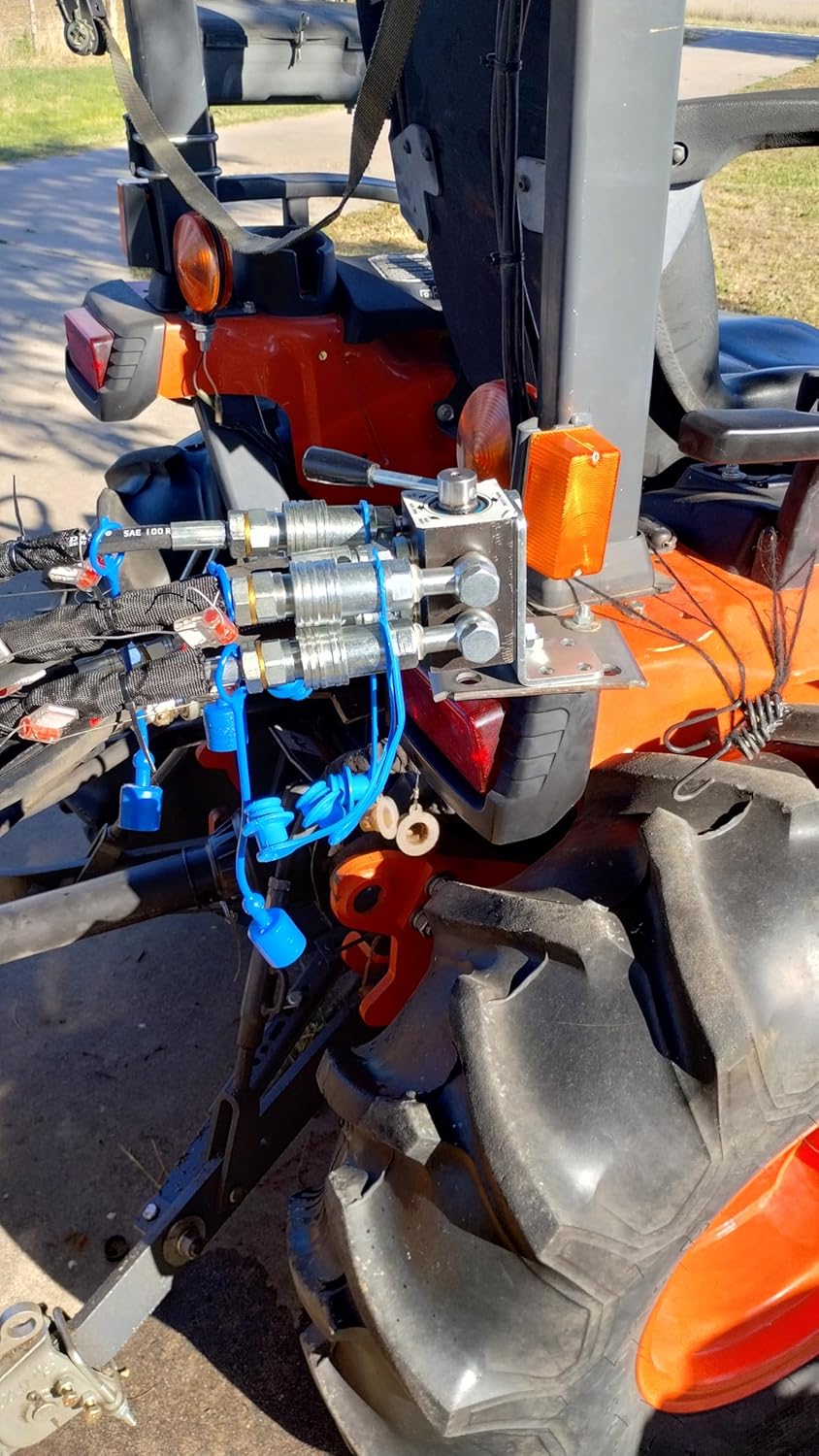

Tractor Remote 6 Port Diverter Valve Manual, 2 into 4 ports including the bracket and bolts. Hydraulic Multiplier

Specifications

• Manual Hydraulic Diverter Valve – 6-Port Remote Control Valve for Tractor – 2 Inlets to 4 Outlets Hydraulic Multiplier – Includes Mounting Bracket and Bolts
• Expand your tractor’s hydraulic functionality with this manual 6-port diverter valve. This system converts a single remote into two double-acting circuits, allowing you to operate multiple hydraulic functions on trailers or rear-mounted implements using only one tractor remote.
• How It Works: If your tractor has only one set of hydraulic remotes but your attachment requires several functions, this diverter valve provides the perfect solution. Connect the diverter to your existing hydraulic remote Position 1: Turn the lever to direct oil flow to the first function Position 2: Turn the lever to direct oil flow to the second function Only one function operates at a time, depending on lever position
• Connection Details: Total of 3 pairs of ports – 1 pair connects to the tractor’s remote outlet – 2 pairs connect to separate hydraulic circuits Equipped with ISO 5675 (Poppet Type) quick couplers – compatible with ISO 7241-1 A standard Suitable for most agricultural hydraulic systems
• Flow Rate: 15.85 GPM Working Pressure: 3625 PSI Maximum Pressure: 5075 PSI Hose Length: 70 cm (27.55") Coupler Type: ISO 5675 (Poppet Style), Male & Female ½” BSP Mounting: Bracket and bolts included
• Ideal For: Tractors, hydraulic trailers, and implements requiring multiple functions from a single hydraulic remote.
• Material: Metal
• Brand: Spare Parts Holland
• Exterior Finish: Galvanized
• Inlet Connection Size: 0.5 Inches
• Inlet Connection Type: BSPP
• Outlet Connection Type: BSPP
• Number of Ports: 6
• Outlet Connection Size: 0.5 Inches
• Specification Met: ISO 7241-1
• Global Trade Identification Number: 08720618401182
