Solar Panel Disconnect Switch 32Amp DC AC Miniature Circuit Breaker 500V 2 Poles with PV Connector and IP65 Waterproof UV-Proof Box for Outdoor Solar PV Homes Battery

Specifications

• ⭐【Excellent Performance】32 Amp DC/AC 500V solar breaker switch, no polarity. Rated Voltage: DC 12-500V protect - and + pole or AC 90~500V protect L and N pole. After iterative upgrading, the short-circuit protection capacity has been increased to 6kA to ensure higher safety and reliability.

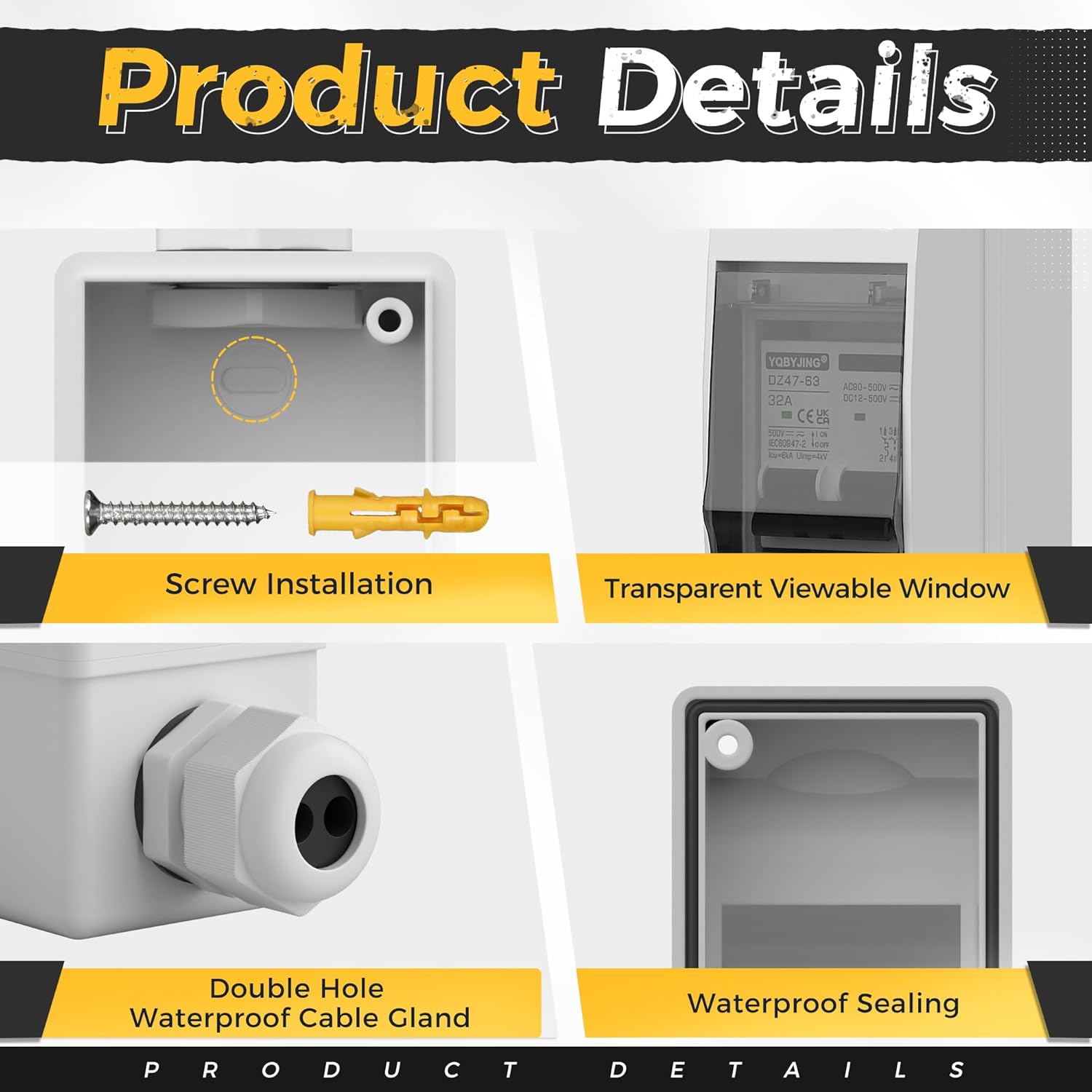

• 💪【High Quality Design】The waterproof shell is made of PC material with an IP65 waterproof rating and UV resistance, making it suitable for outdoor use. Additionally, flame retardants have been added to ensure safety with a V1 flame retardant rating. With a transparent cover and color indicators, monitoring the status and operation of your circuit breaker has never been easier. silver contacts, and sufficient pure copper coils to ensure its high quality.

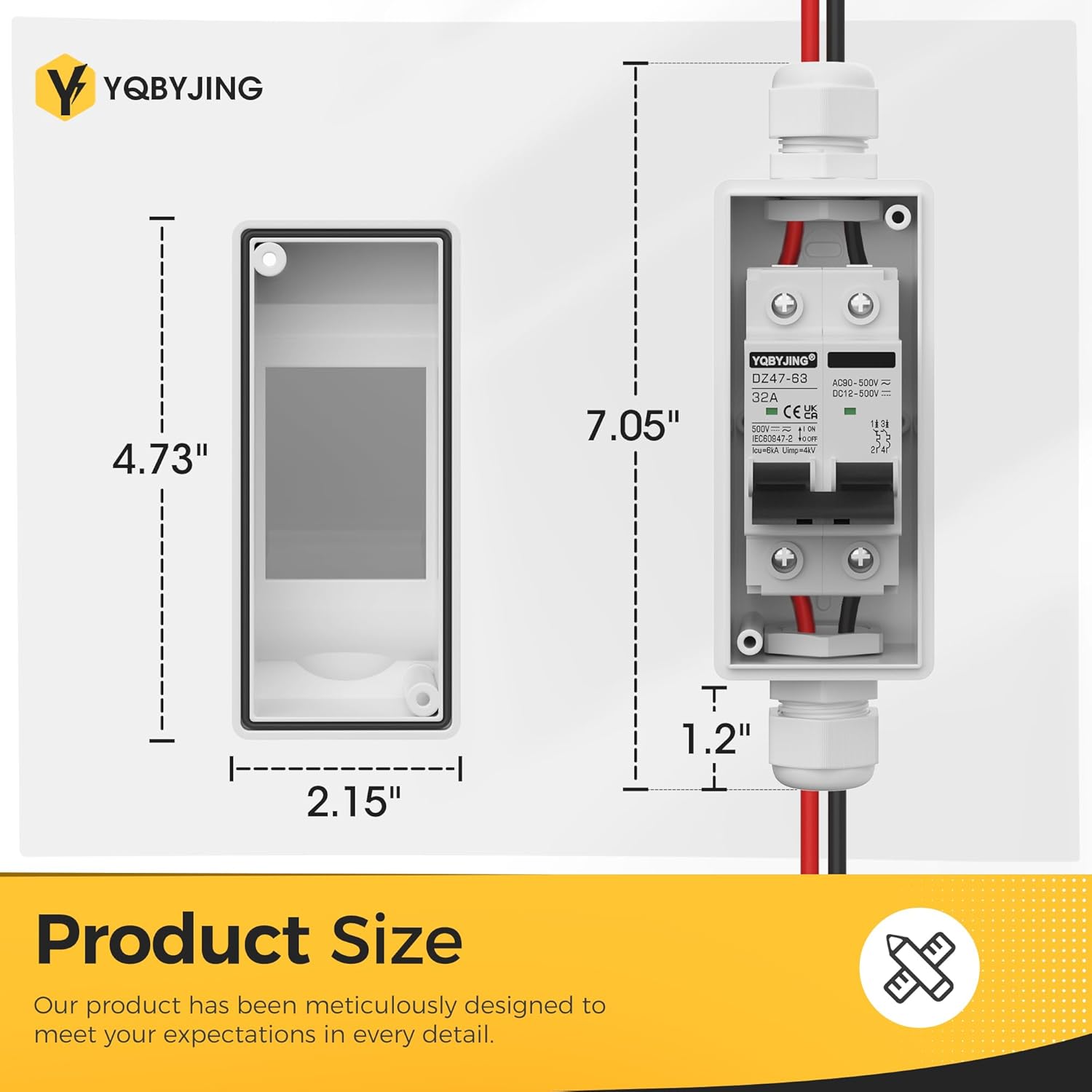

• 🛠️【Easy to Use】 Solar disconnect switch with solar extension cable with a length about 9.84 inch and two pairs of solar connectors to achieve faster and safer wiring and plug and play. AC/DC circuit breakers are designed to be more precise trips based on current, even in extreme temperatures ranging from -40ºC to 85ºC, without re-rating.
• 🏡【Widely Application】The 32 amp solar panel disconnect switch is suitable for photovoltaic solar panel array, solar charge controller, batteries, power inverter, household lighting, small motor control, home, RV, etc.
• 😊【Quality Service, Buy with Confidence】 At YQBYJING, each product undergoes strict quality inspection, to ensure that you receive are satisfied with the product, high-quality solar circuit breaker will bring you safer and higher quality green of life!
• Operation Mode: manual
• Current Rating: 32 Amps
• Contact Type: Normally Open
• Connector Type: Screw
• Brand: YQBYJING
• Switch Type: Toggle
• Terminal: Quick-connect
• Material: 2 Holes 500V Box & Wire
• Circuit Type: parallel
• Mounting Type: Plug-In Mount
