BTF-LIGHTING 6Pin 12mm SMD LED Connector Kit 6 Pin L Splitter Right Angle Corner,T Shape,Solderless Gapless Connector, Strip to Strip Jumper Wires for PWM SMD RGBCCT Strip Lights

Specifications

• 【LED Solder-less Gapless Connector】Only support the PWM 6PIN 12mm(0.47in) width 5050SMD RGBWW RGBCCT LED Strip(IP30/65). Note: Not for 2Pin 3Pin 4Pin 5Pin SMD/FCOB 5mm/8mm/10mm width LED Strip.
• 【Compatible Lights】Work with 6PIN 5050SMD 0.47in/12mm 5 in 1 color RGBWW RGBCCT LED Strip(IP30/65). Not suitable for the 144LEDs/m 160LEDs/m FCOB/SMD LED strip(2Pin 3Pin 4Pin 5Pin 6Pin) . IP30 LED Strip：Peel off the double-sided tape to expose the FPCB board. IP65 LED Strip：Remove double-sided tape and silicone layer from the strip surface.
• 【Package content】14 PCs strip to strip connectors,4 PCs L-shaped LED FPCB board, 4 PCs T-shaped LED FPCB board,4 PCs dual-end with wire connectors,4 PCs single-end with wire connectors. Note：Before purchasing, please ensure that your LED strip lights are 6pin and 12mm wide. If you are unsure, please contact us with pictures and details, and we will help you determine whether they are compatible.

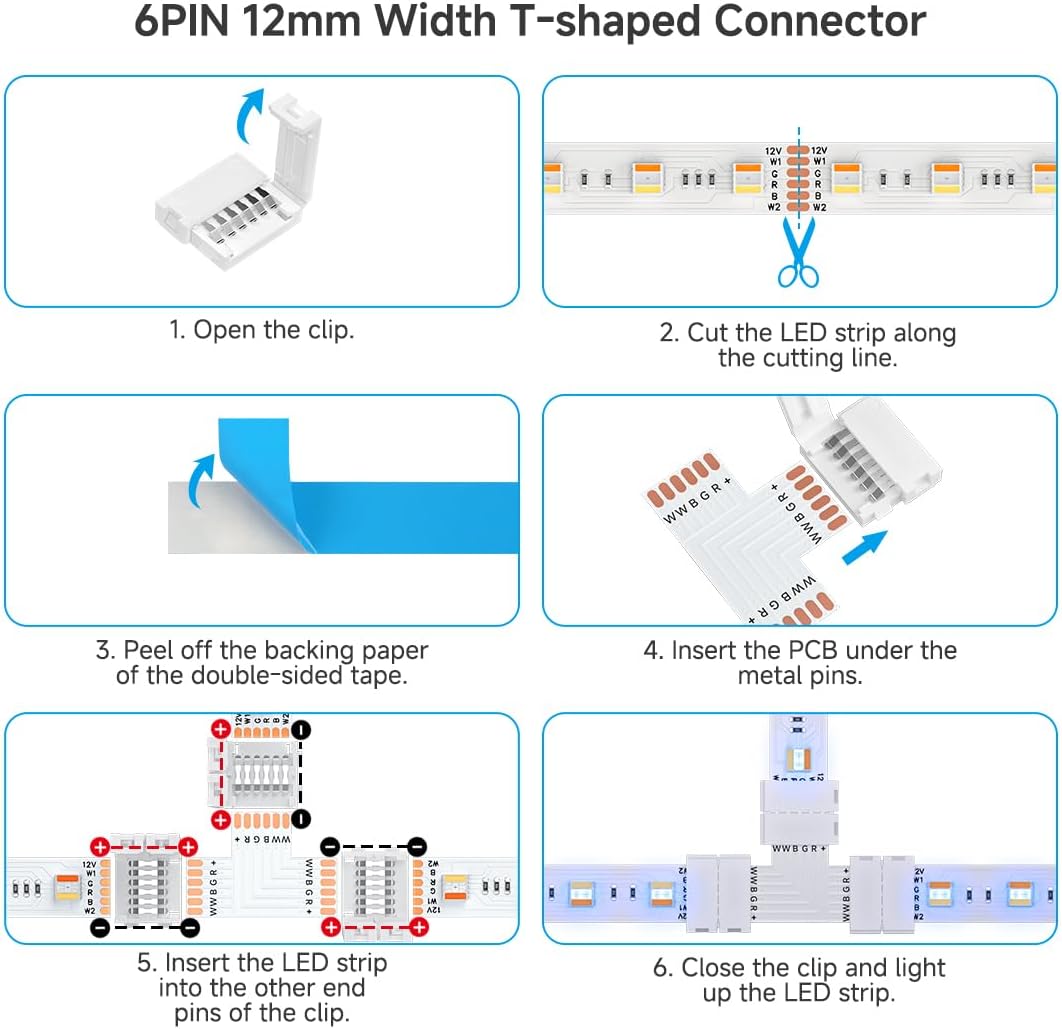

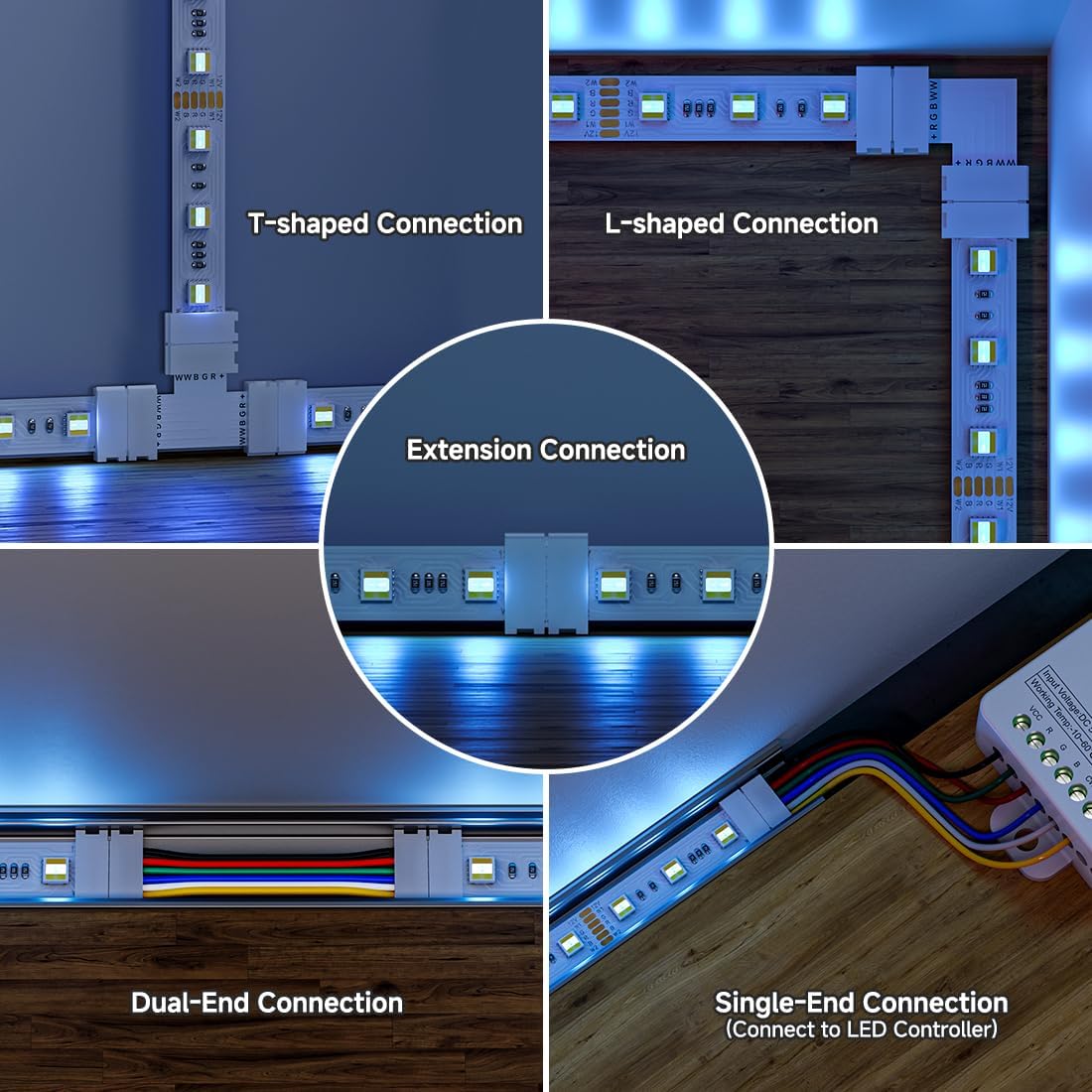

• 【Easy Installation】No soldering required. Simply insert the prepared LED strip section into the connector to complete the connection.The L-shaped/T-shaped connector can easily solve the problem of corner connection!SMD LED strip Splicing,connect the controller directly.No soldering required. Simple operation.Making connection natural and beautiful！Durable and can be reused.Tinny and low profile design.
• 【Note】1. Avoid twisting or damaging the LED strip. Ensure the connector contacts are clean before installation. Confirm the connector cover is securely fastened before use. 2.For 6pin 12mm IP65 SMD strip, peel off the adhesive tape and silicone coating to expose the FPCB board. Ensure the connector is tightly closed to maintain a secure connection, especially when bending the strip.
• 【Note】If connecting multiple LED strips and the end lights appear dim, the issue may be insufficient power supply, not the connectors. You should a higher-power supply or add an amplifier for optimal performance.
• Color: White
• Brand: BTF-LIGHTING
• Indoor/Outdoor Usage: Indoor
• Special Feature: 12mm width, 6PIN SMD Connector, Solder-less Gapless Connect, indoor use
• Light Source Type: LED
• Power Source: DC
• Light Color: Multicolor
• Theme: Christmas
• Occasion: Home
• Material: Plastic+PCB
