3/4" NPT Industrial Grade 3 Stage Air Drying System, Air Compressor Water Separator System Filter Oil Water Separator Dryer for Plasma Cutter and Paint Spray,Auto Drain

Specifications

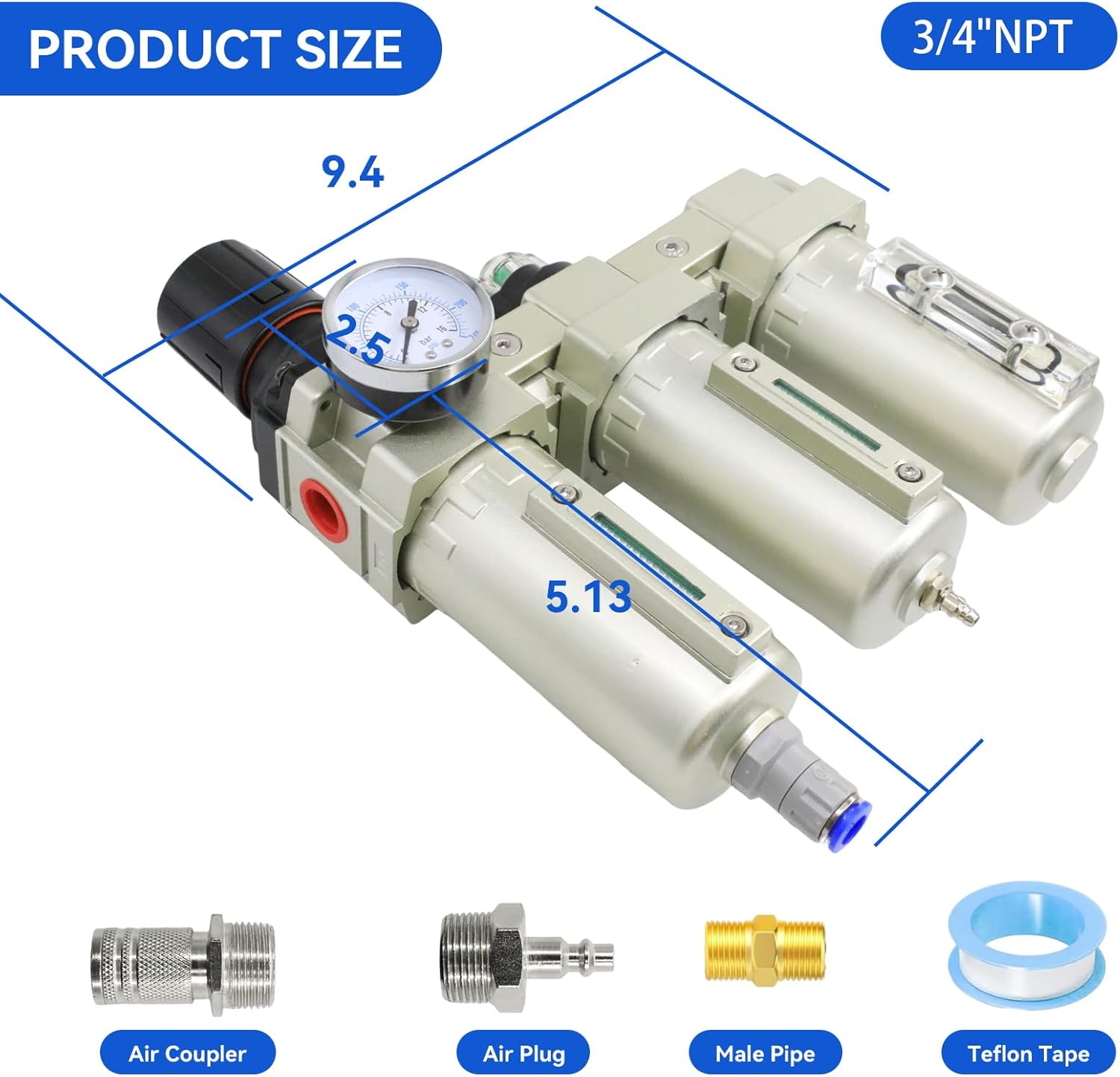

• 【Industrial Performance】The air dryer for compressor features two robust 3/4" NPT air ports and a 1/4" NPT gauge port, handling high-pressure environments (up to 240 PSI) for various industrial applications. (Do not install horizontally)
• 【First-Stage Filter Regulator】 The adjustment knob regulates air pressure within a range of 0-240 psi; press the knob to lock. (5 Micron Filter) Removes 95% of particles and moisture.

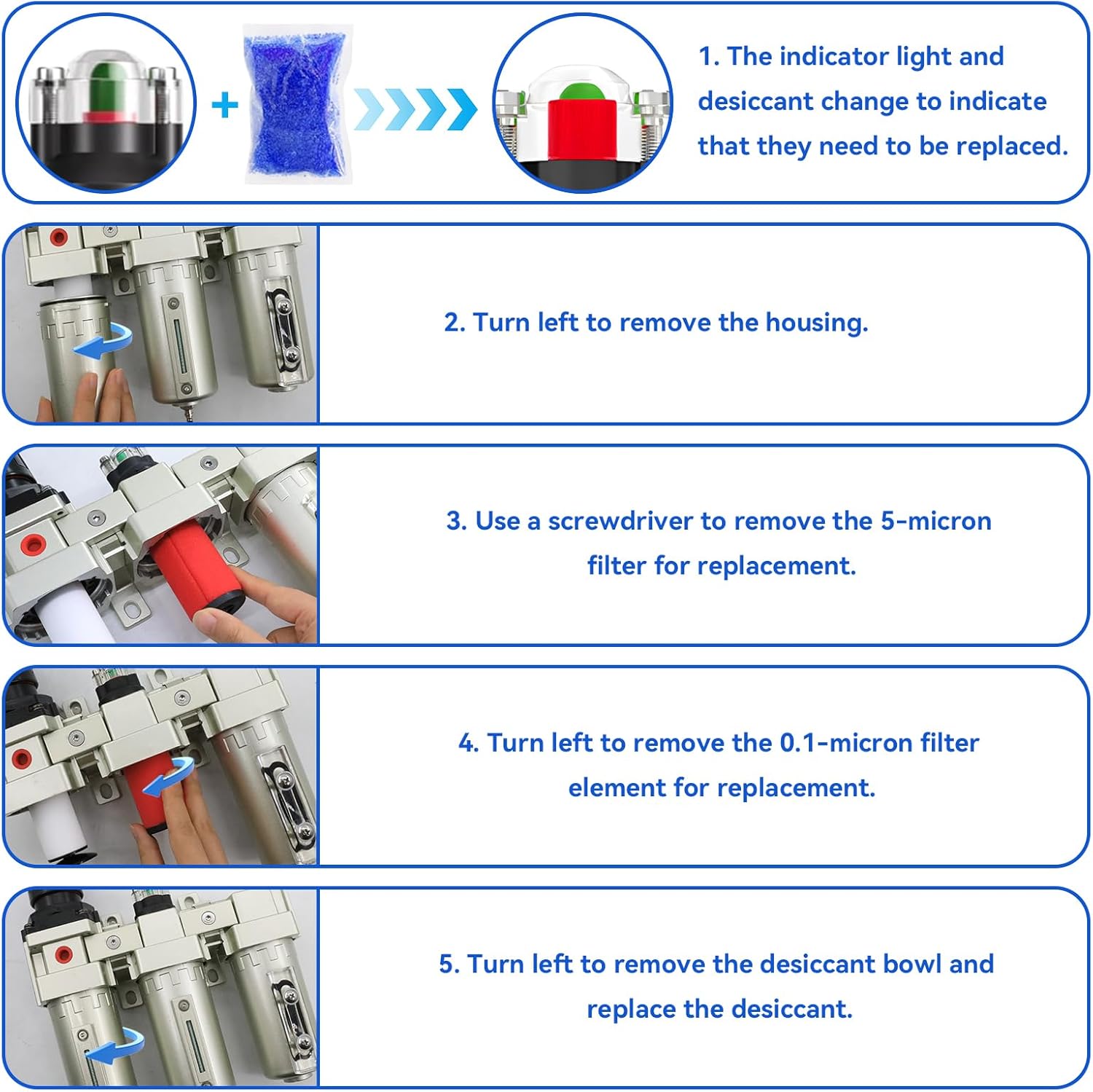

• 【Second-Stage Coalescing Filter】 (0.01 Micron Coalescing Filter) Removes 99.98% of residual moisture and impurities. The red indicator light on top illuminates when replacement is required.
• 【Third-Stage Drying System】 Drying beads inside the metal bowl thoroughly remove and dry moisture and impurities from the air. The drying beads inside the metal bowl changing color from blue to pink indicates replacement is required.
• 【Complete Package】 Arrives with everything you need for immediate operation, including a pressure gauge, air connectors, pipe fittings, replacement filter elements, desiccant beads, and thread seal tape. 【Note】：To prevent air leakage: When installing screws, wrap sealing tape around the threads.
• 【Ours】Rest assured with our commitment to quality! This air compressor dryer system comes backed by a 36-month return. Should you need assistance, our dedicated support team is available to help with installation guidance or technical inquiries.
• 【Note】 The fasteners and pressure gauges at each stage must be securely tightened to avoid water leakage. If excessive moisture exists in the lines before installation, first remove the water or repeatedly replace the drying beads to eliminate it.
