Baomain BM-3112 Limit Switch, TZ-3112 Sealed Roller Plunger, Momentary SPDT 1NO+1NC IP67 Waterproof
14 200 ֏
Mar. 2 - 9 In Armenia
Delivery & taxes included
Condition: new
Specifications
- 【Sealed Roller Plunger】Combines a sealed construction with roller actuation for low-friction performance
- 【Compatible TZ-3112 Replacement】 Designed as an OEM-style replacement for use in CNC machines, 3D printers, and automated doors
- 【5A SPDT Control Circuit Switching】 Features a 1NO+1NC configuration, rated for 5A/250VAC to handle control and safety interlock functions
- 【IP67 Rated Waterproof Seal】 IP67 rating protects against dust ingress and water immersion for use in damp or dusty environments
- 【Pre-Wired with 3-Meter Cable】 Includes a 3-meter(9.8Ft) lead to simplify installation and provide flexibility in positioning
- Operation Mode: ON-OFF
- Current Rating: 5 Amps
- Operating Voltage: 250 Volts

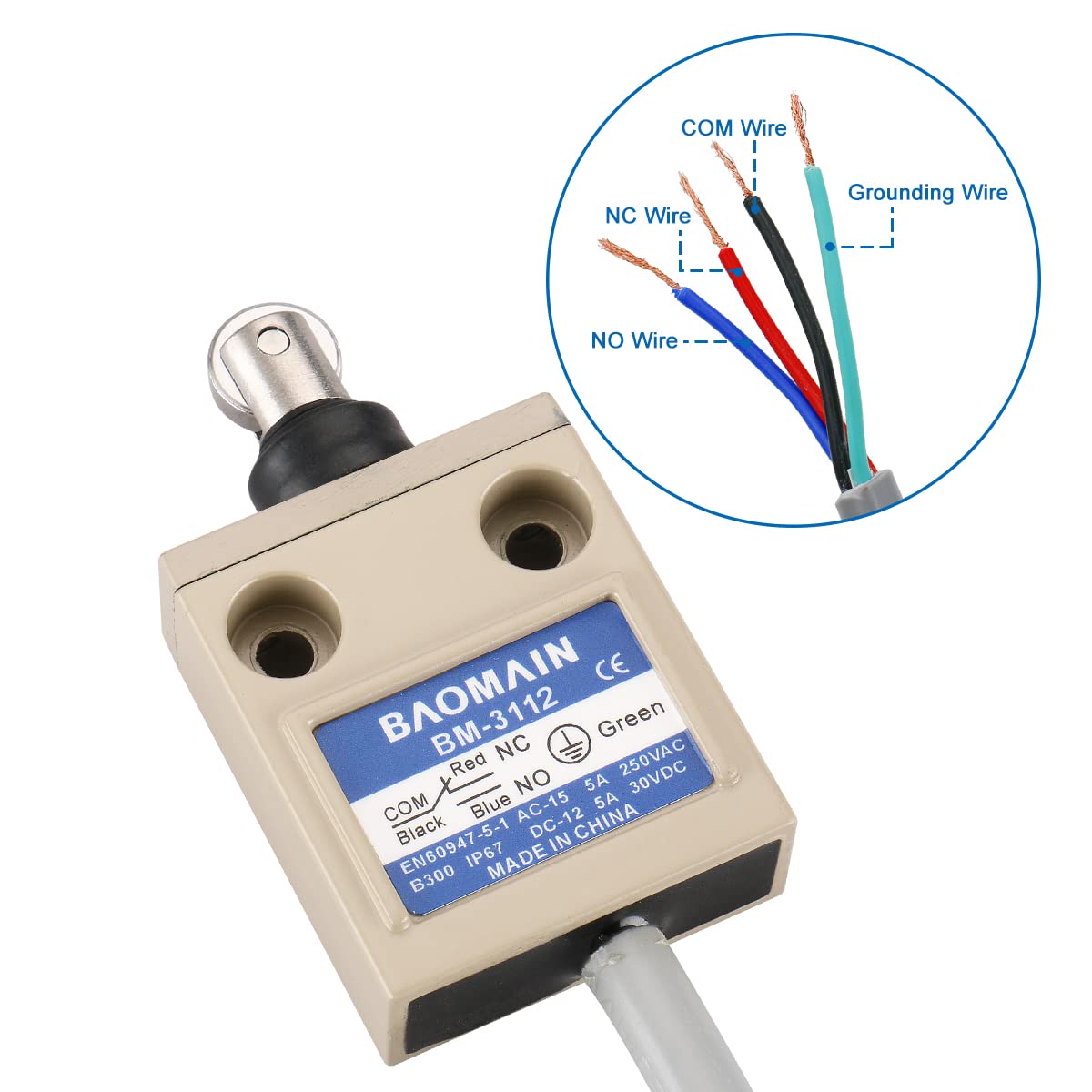

- Contact Type: Normally Open & Normally Closed
- Connector Type: Auxiliary, Clamp
- Brand: Baomain
- Switch Type: Limit Switch
- Terminal: Spdt
- Material: Metal
- Item dimensions L x W x H: 7 x 9 x 1.2 inches
14 200 ֏
Mar. 2 - 9 In Armenia
Delivery & taxes included
Condition: new
Specifications
Model
BM-3112
Operation Mode
ON-OFF
Current Rating
5 Amps
Operating Voltage
250 Volts
Contact Type
Normally Open & Normally Closed
Connector Type
Auxiliary, Clamp
Brand
Baomain
Terminal
Spdt
Item dimensions L x W x H
7 x 9 x 1.2 inches
Circuit Type
2-way
Actuator Type
Plunger
Contact Material
Silver
International Protection Rating
IP67
Number of Positions
3
Control Method
Push Button
Connectivity Protocol
X-10
Color
Grey
Unit Count
1.0 Count
Number of Items
1
Manufacturer
Tmaztz
Control Type
positional
Product Dimensions
7 x 9 x 1.2 inches
Item Weight
12 ounces
Item model number
BM-3112
Date First Available
June 26, 2016
